 RED CHEVY PRERUNNER

redchevyprerunner/01ba6fcc1816c35e44e5a75fd2e4241dee8bde585d.jpg

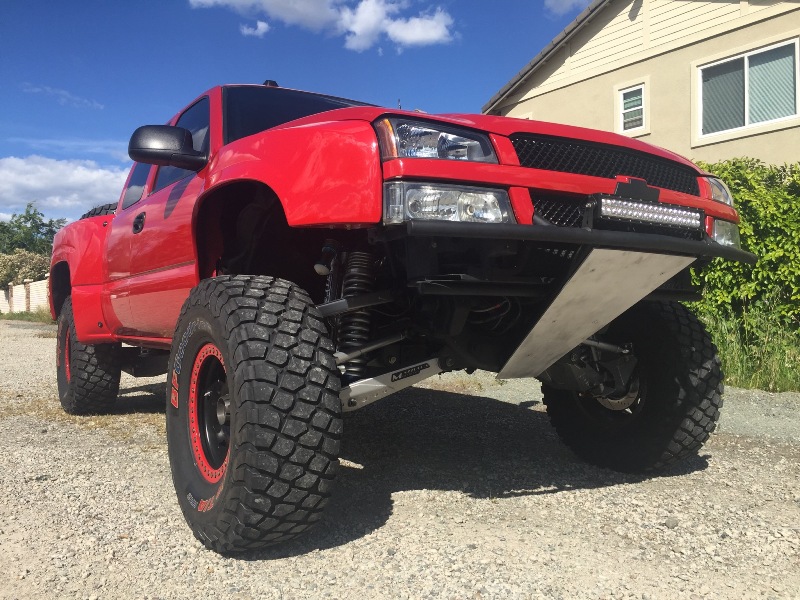

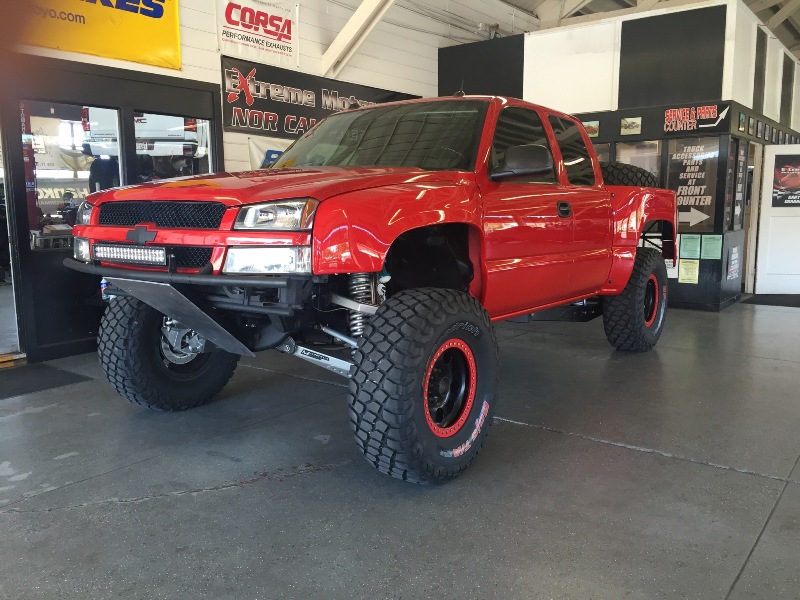

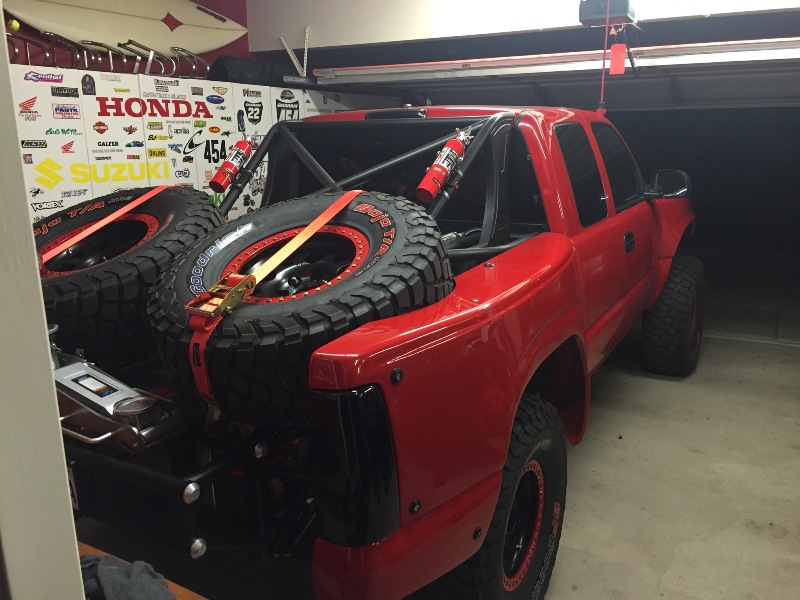

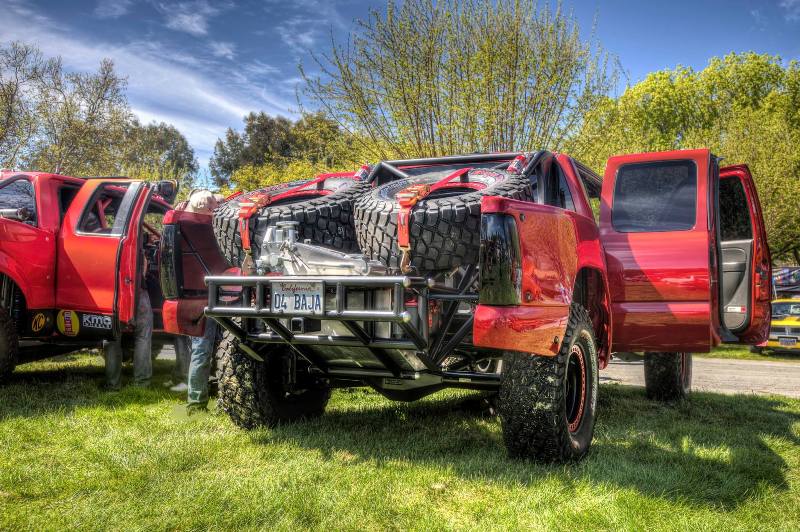

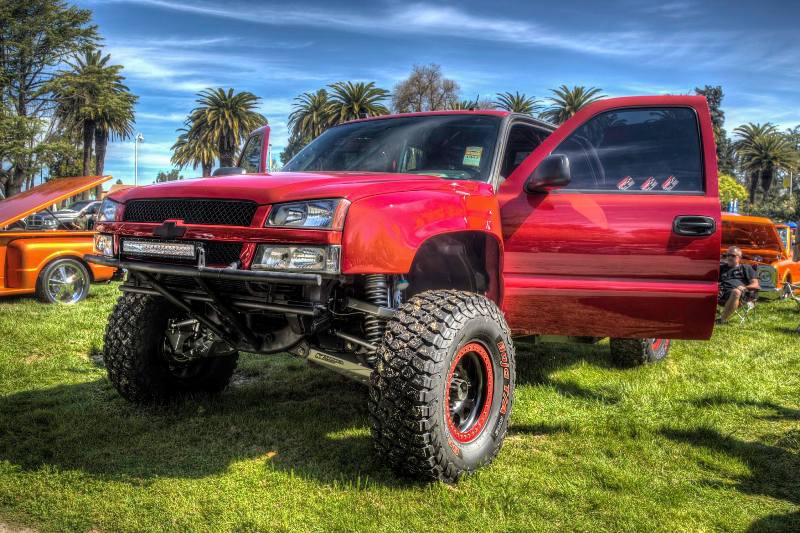

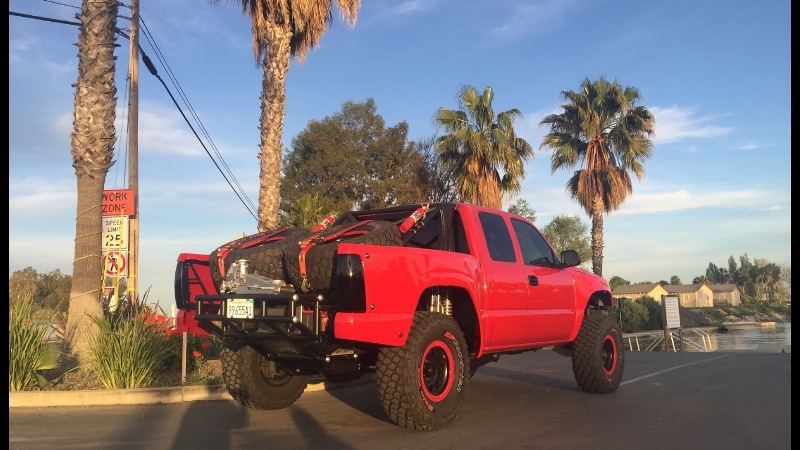

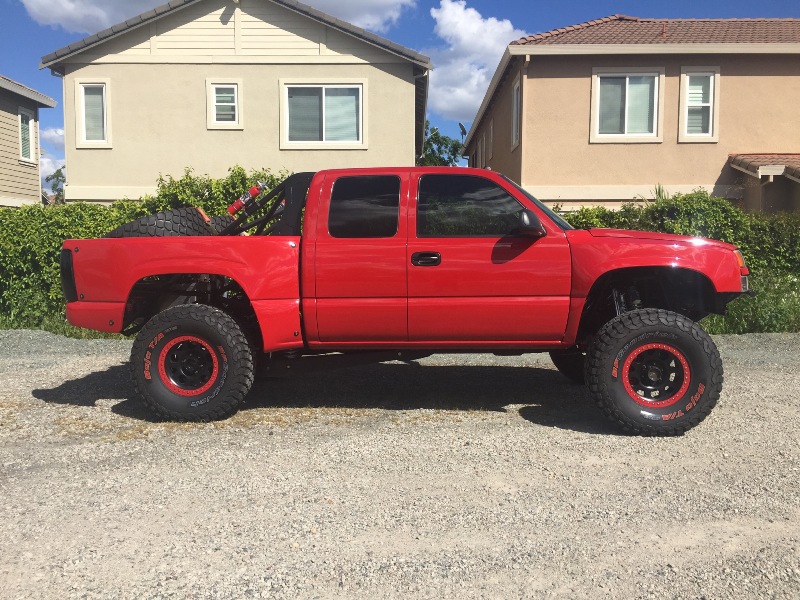

2004 Chevy Prerunner, Linked, Caged, 4 Seater

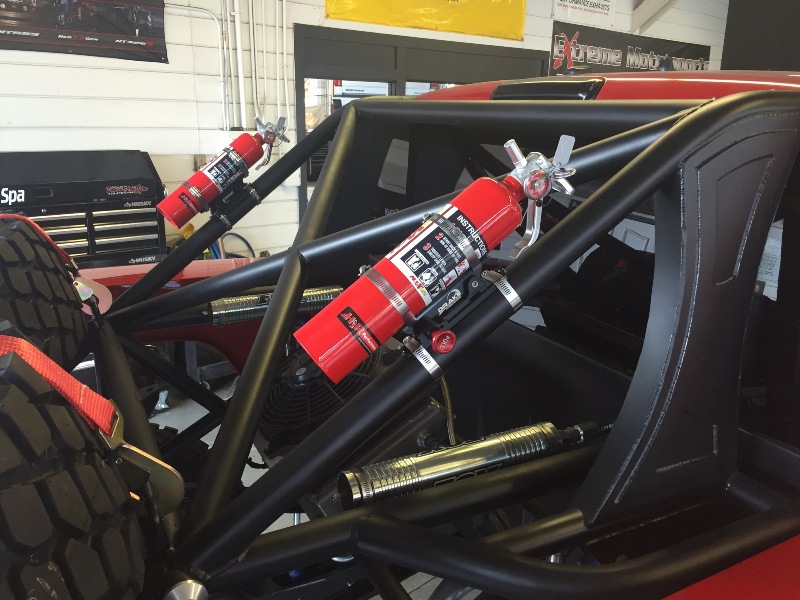

2" Chromoly fully caged


STREET LEGAL DAILY DRIVER

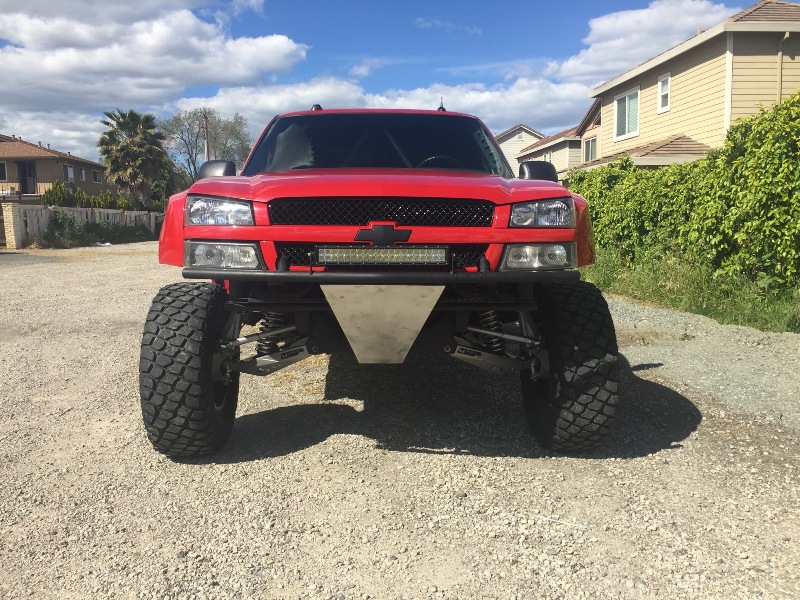

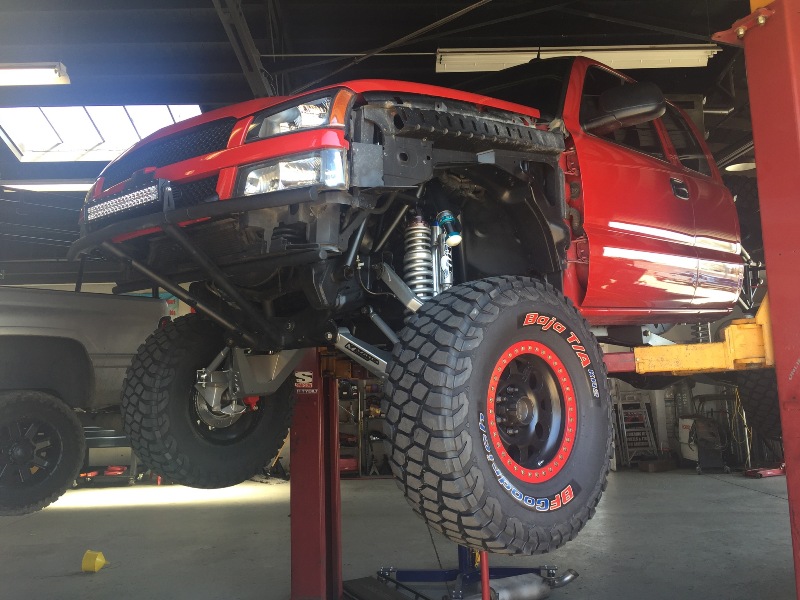

Front: 18" travel

Mazzulla long travel kit

Fox 2.5 10" coil overs with remote

Fox 2.5 double bypass shocks with remote

King 2.5" bumps

Mazzulla 2" hubs with 5/8 studs

Engine cage tied from front bumper to cab cage

07+ Brake upgrade with drilled and slotted rotors

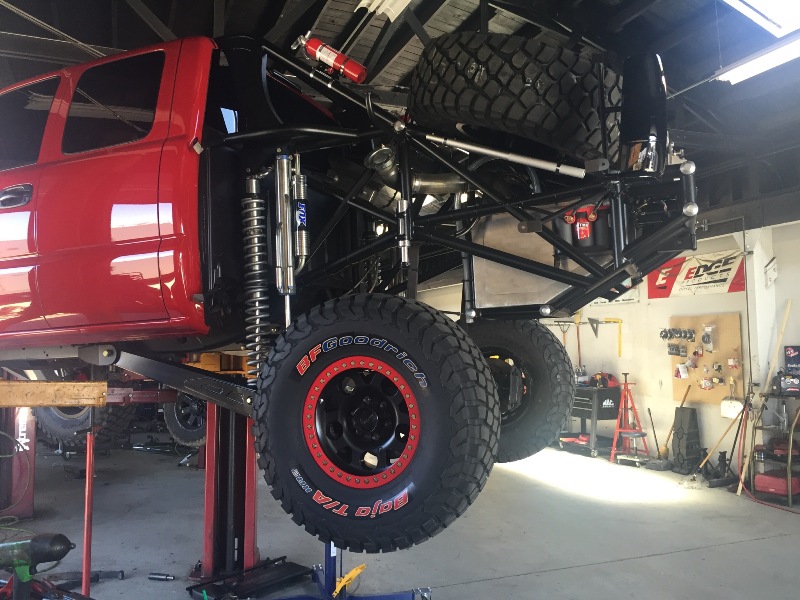

 Rear: 24" travel

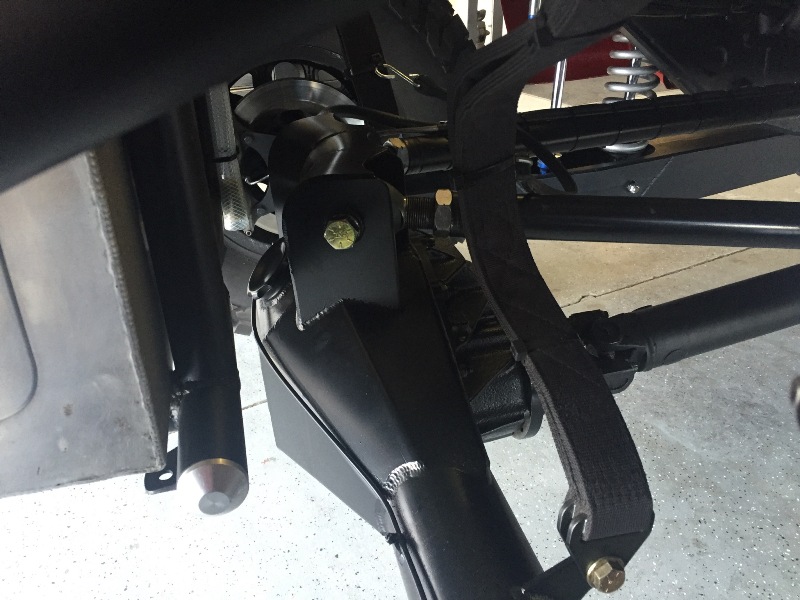

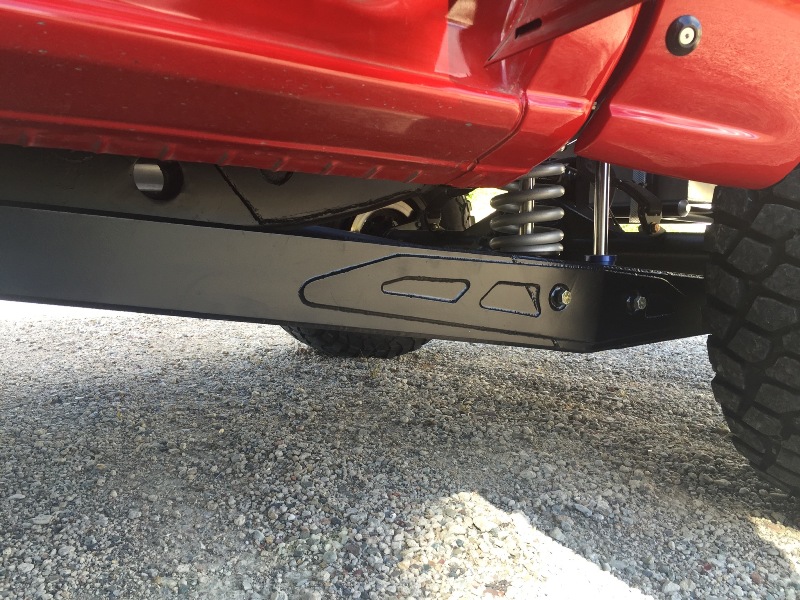

 4 linked

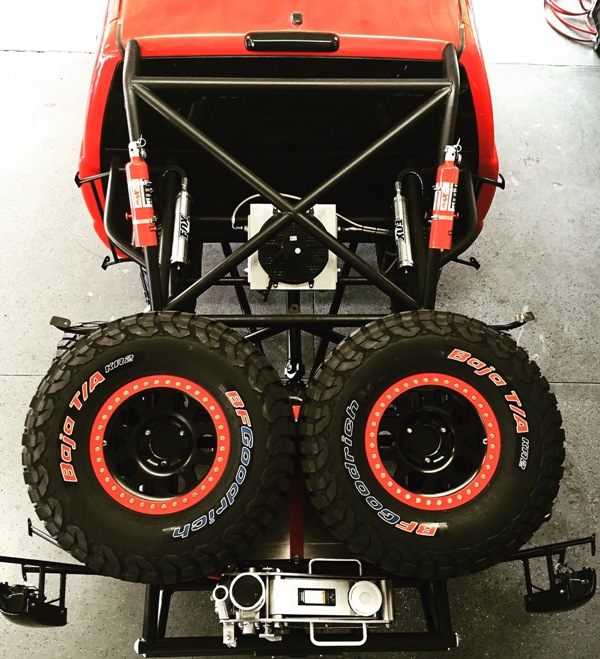

18" Fox 3.0 triple bypass shocks rear with remote

18" Fox 2.5 coil over shocks with remote

2" Fox bumps

Frame cut off at cab, full 2" tube rear chassis.

30" mechanical travel, bumped and strapped at 24" travel



 Shortened 10" with crew cab bedsides = 135" wheel base



Weighs 6120 lbs, 3170 front, 2950 rear



Glassworks front fenders - with undercoating

Hanneman bedsides - with undercoating



5.3 V8

Custom tune

Cold air intake

Pacesetter Long Tube Headers - Ceramic coated

Magnaflow stainless mufflers - true duals

4L60E built heavy duty and shift kit

Tranny cooler

Transmission temp gauge in dash

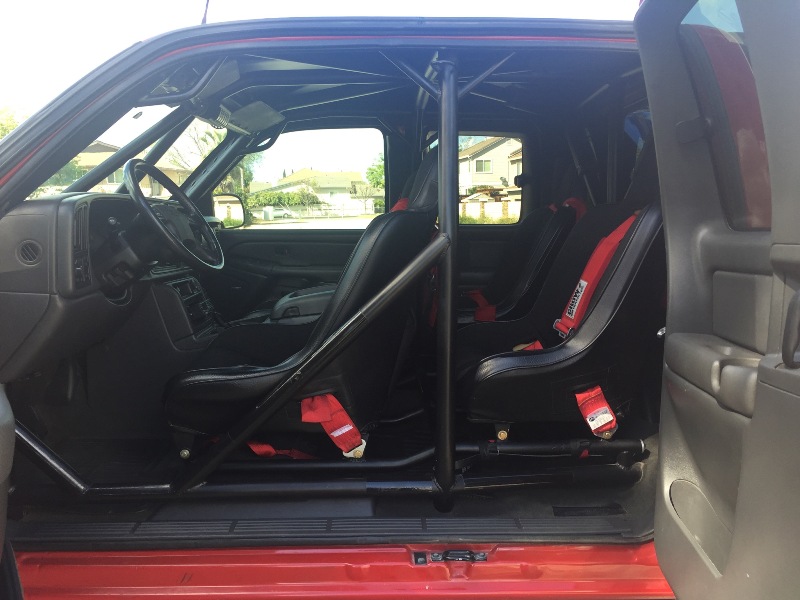

All a/c vents fully function despite 2" tubing running horizontally through the dash and firewall.



4 - PRP Premier seats

4 - Crow harnesses 5 point

PCI radio system - car to car



20" Cree dual row light bar



Fuel system:

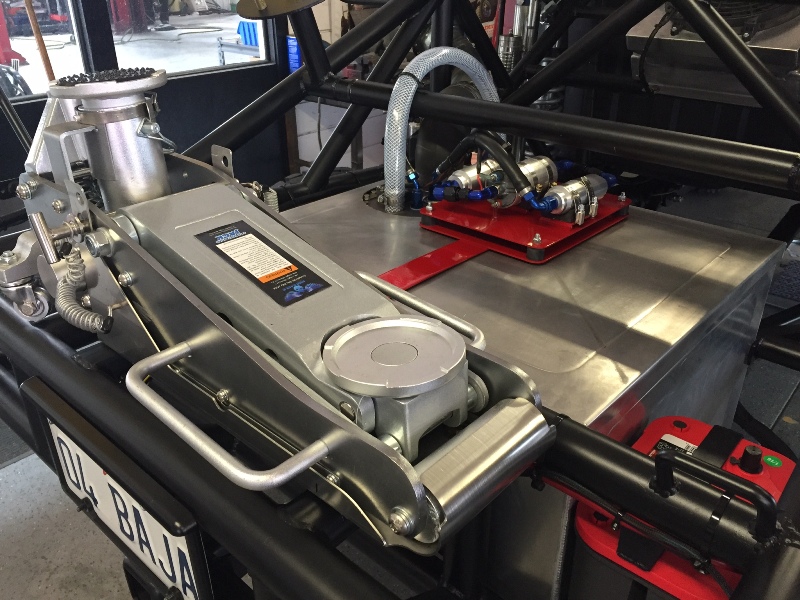

RacerX 41 gallon fuel cell

Bosch fuel pump

Mallory regulator

Aeromotive Fuel Pressure Gauge

Russell fuel lines and connectors

Factory fuel gauge functions



2 piece custom driveline with 1350 u-joints



 9" Tubeworks Chromoly 4" housing - 71" WSM

40 spline 300m axles

ProAm hubs 2.5" with 5/8 studs

Wilwood brake calipers and rotors

5.14 gears - spooled

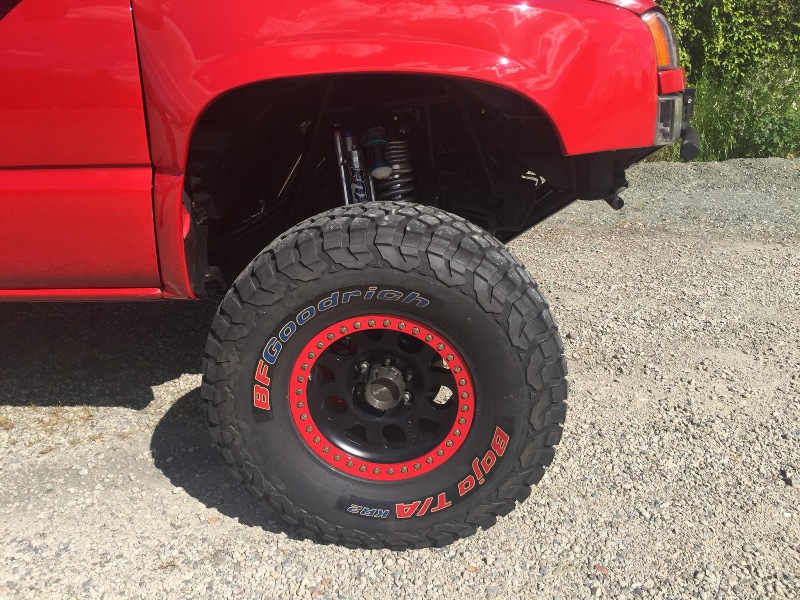

37" BFG KR2 tires

17" KMC Enduro beadlock wheels

Powder coated black wheels, and Red beedlock rings


2 Red Top Optima batteries

Pro Eagle aluminum jack

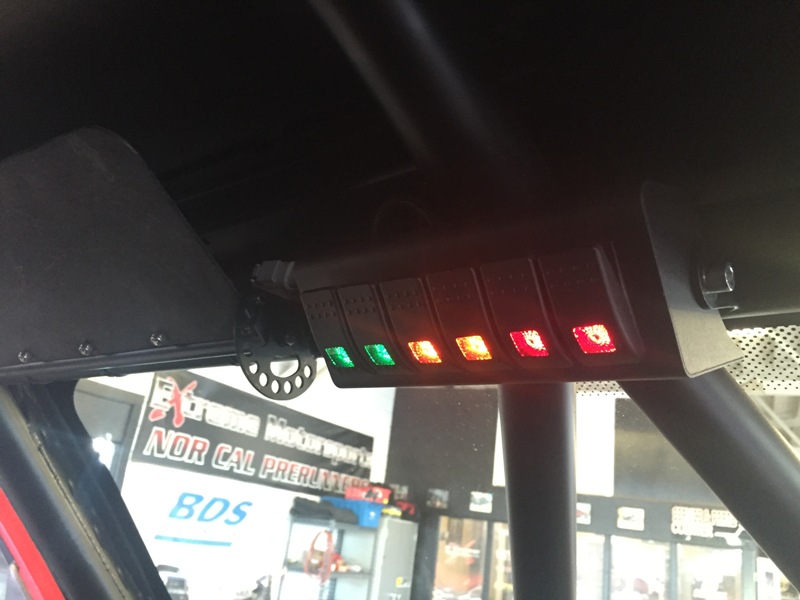

S-POD switch and system for all auxilary circuits

Smoked tail lights





redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

RedChevyPrerunner2/march217.jpg

RedChevyPrerunner2/march217.jpg

RedChevyPrerunner2/march217.jpg

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

GaryPage/DSC02138.JPG

GaryPage/DSC02138.JPG

GaryPage/DSC02138.JPG

redchevyprerunner/016ec76bb247016b248da73b0d994f1f70bb7637d2.jpg

redchevyprerunner/12247760_10205879546014197_8205608552346166802.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/1506362102058795460541986876961466261466905.jpg

redchevyprerunner/IMG9624.JPG

Click here for original build page in 2008

Click here for updated build 2016
