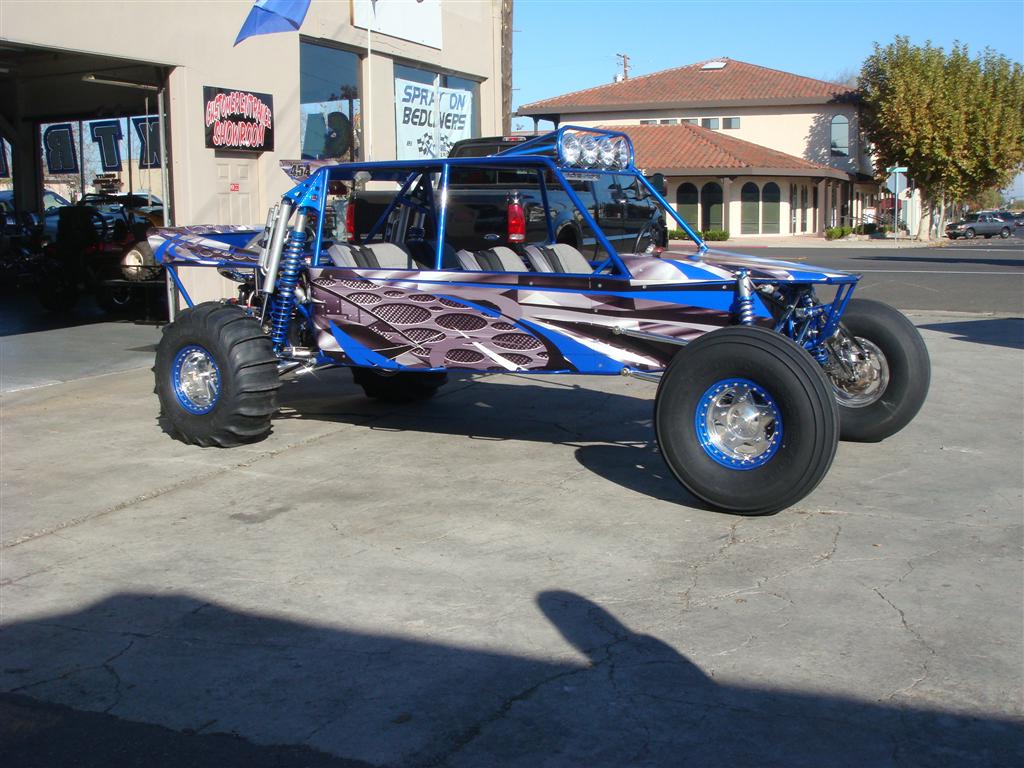

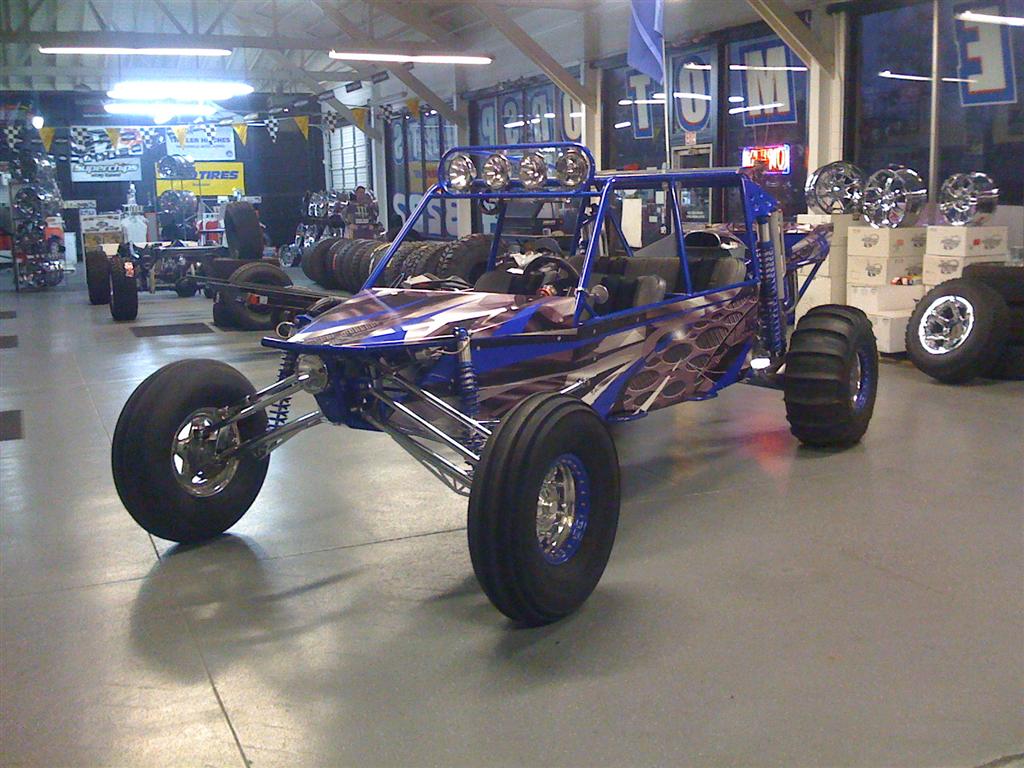

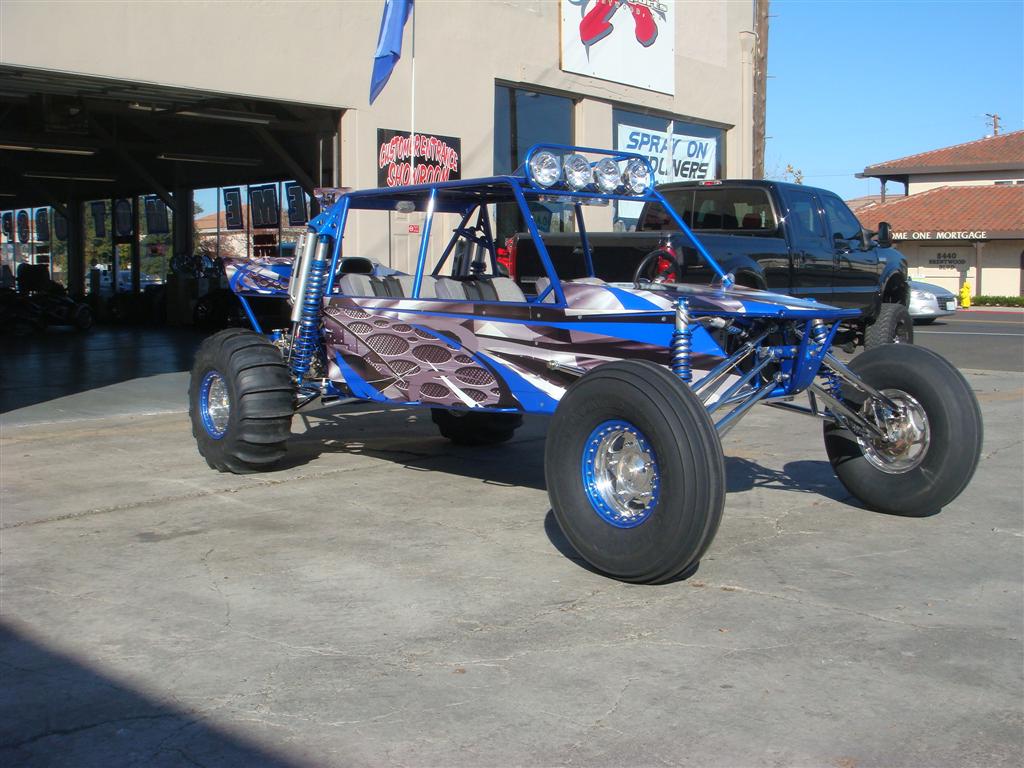

2008 Desert Dynamics

Sand Car

Desert Dynamics 4/5 seat chassis

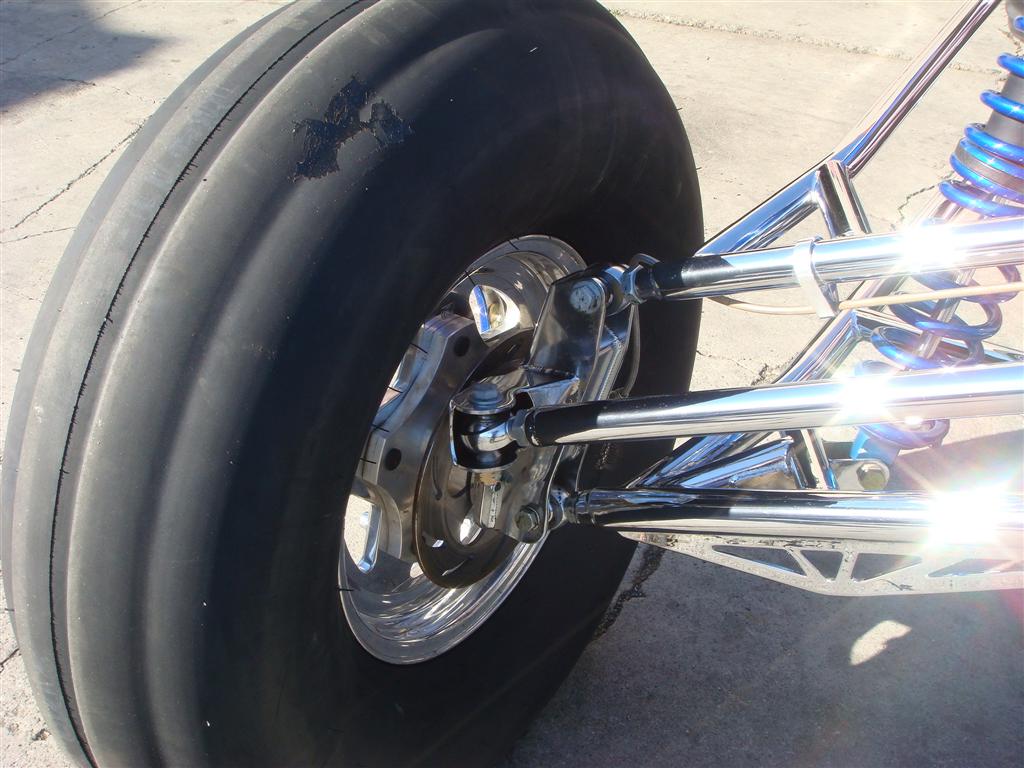

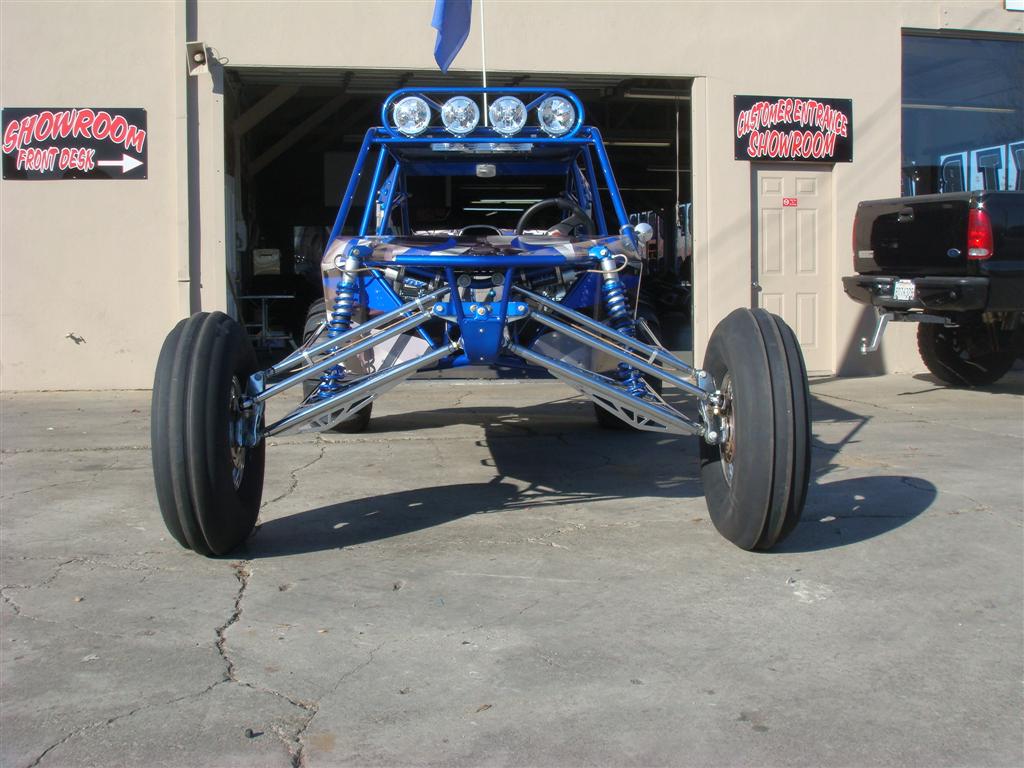

Desert Dynamics long travel front A-arms

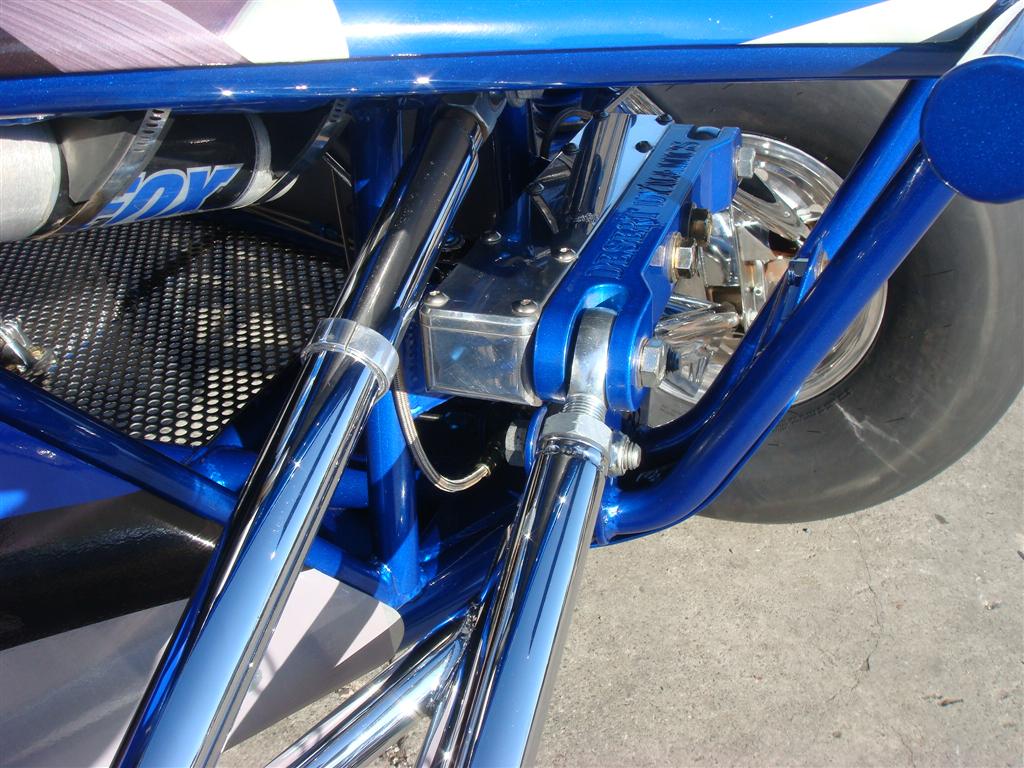

Desert Dynamics steering rack

Desert Dynamics heavy duty King Kong spindles – double sheared

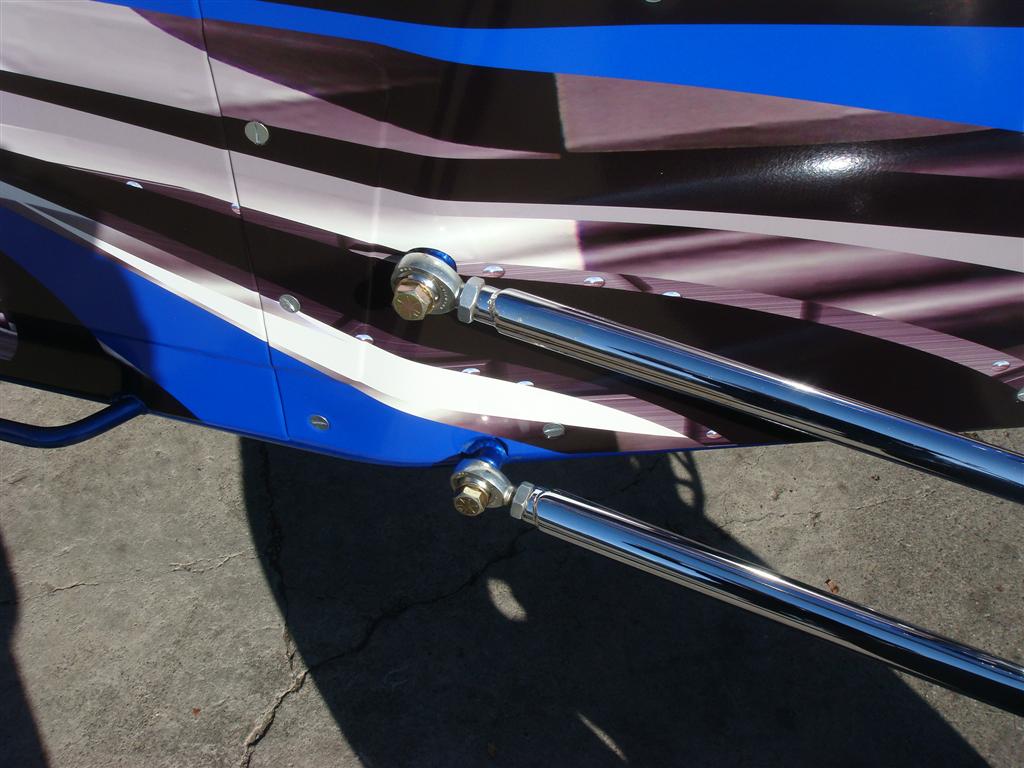

Desert Dynamics long travel rear trailing arms

930 Axles

Micro-stub hubs

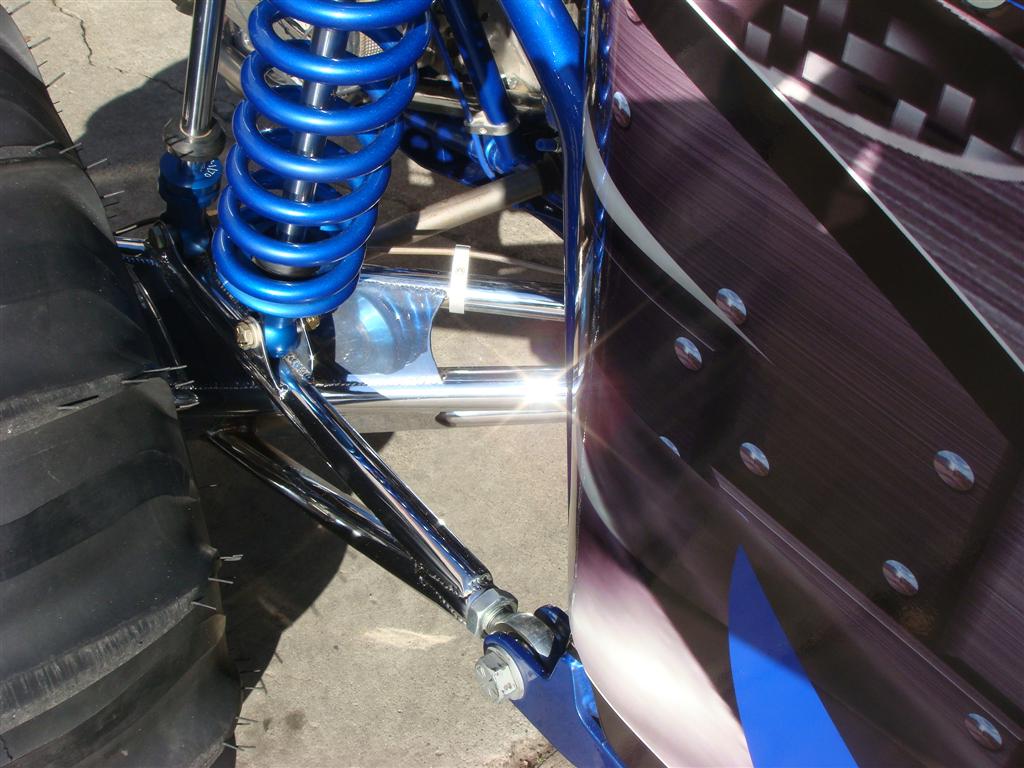

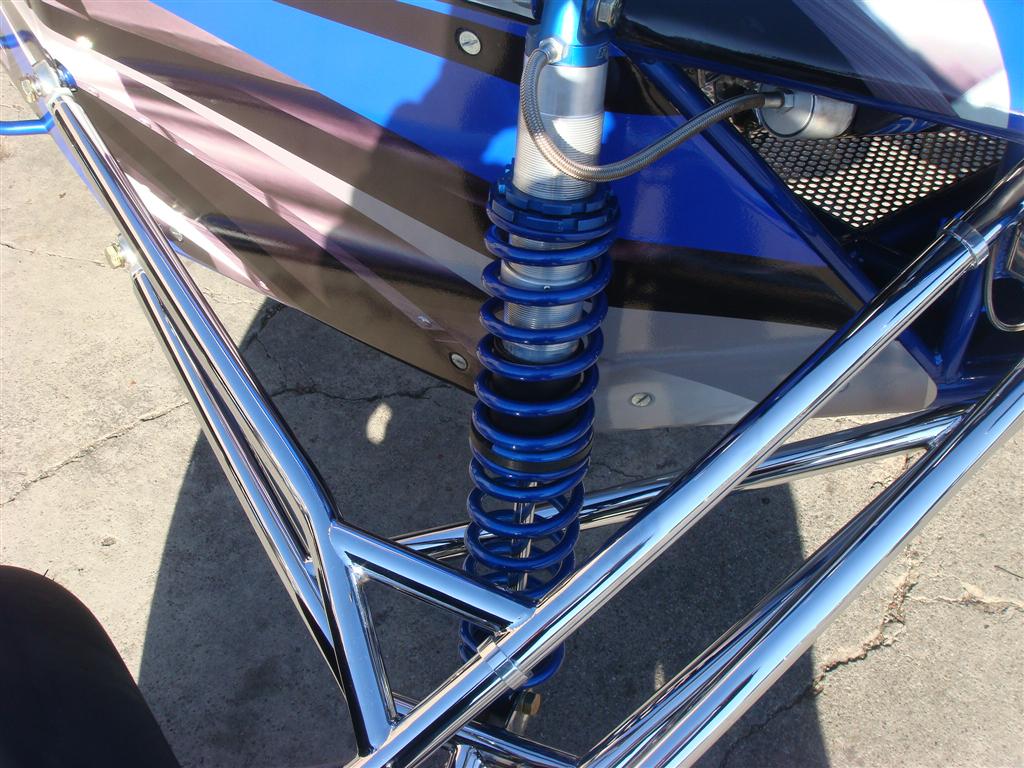

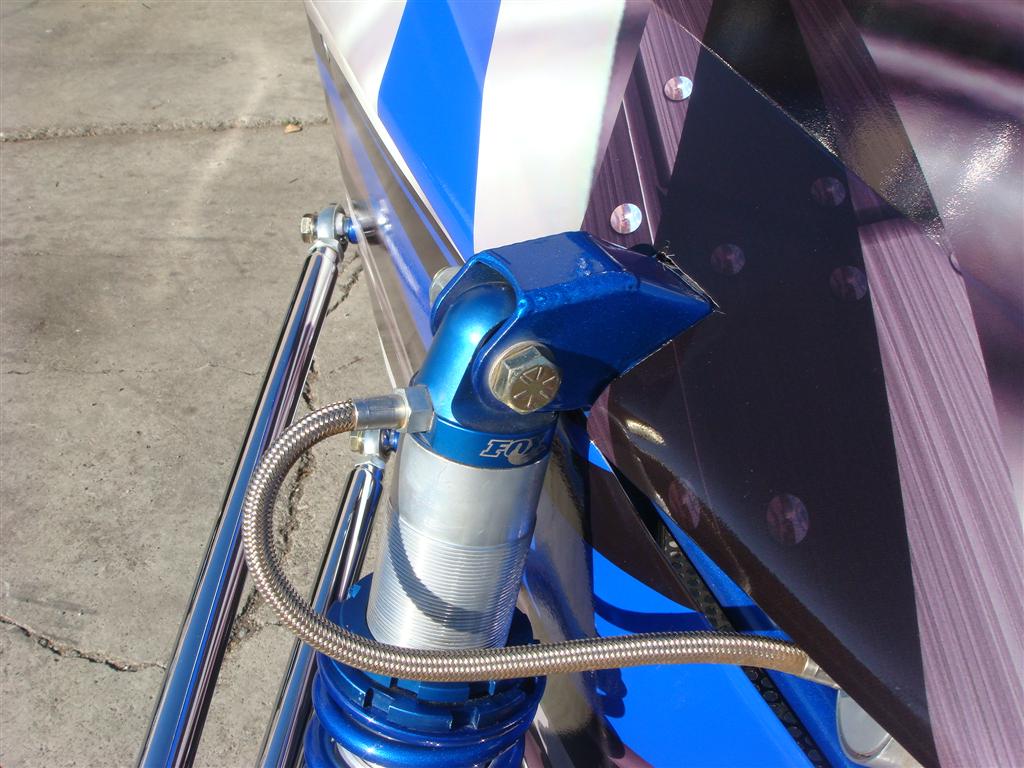

Fox remote reservoir 2.0 coil over shocks – front

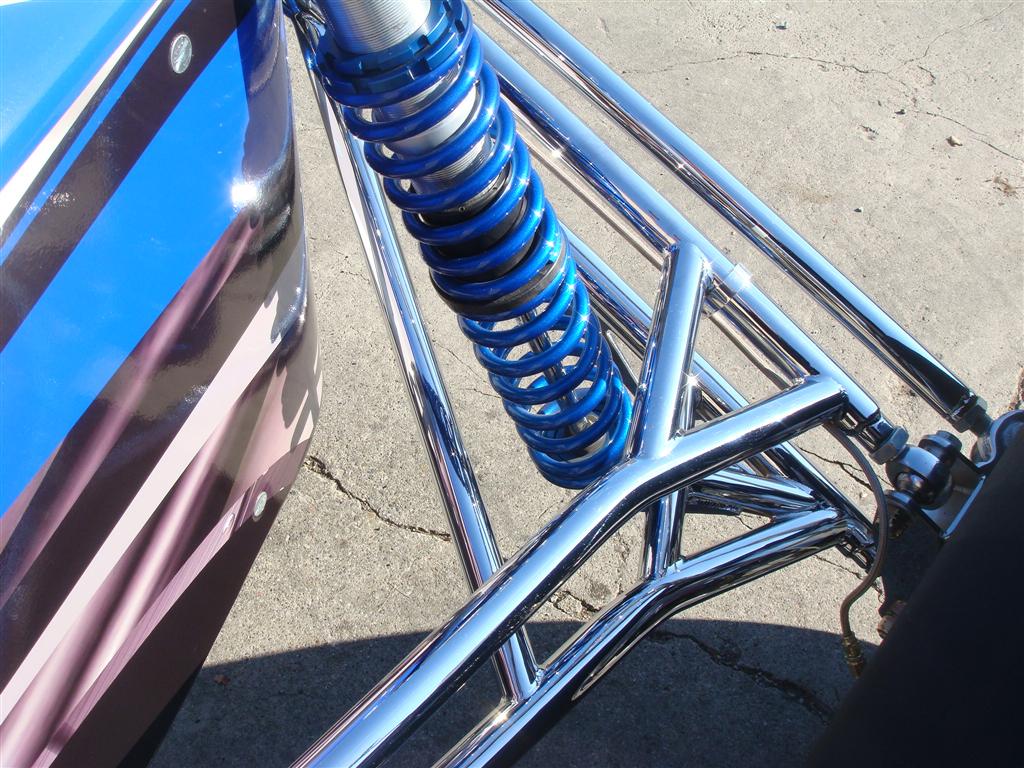

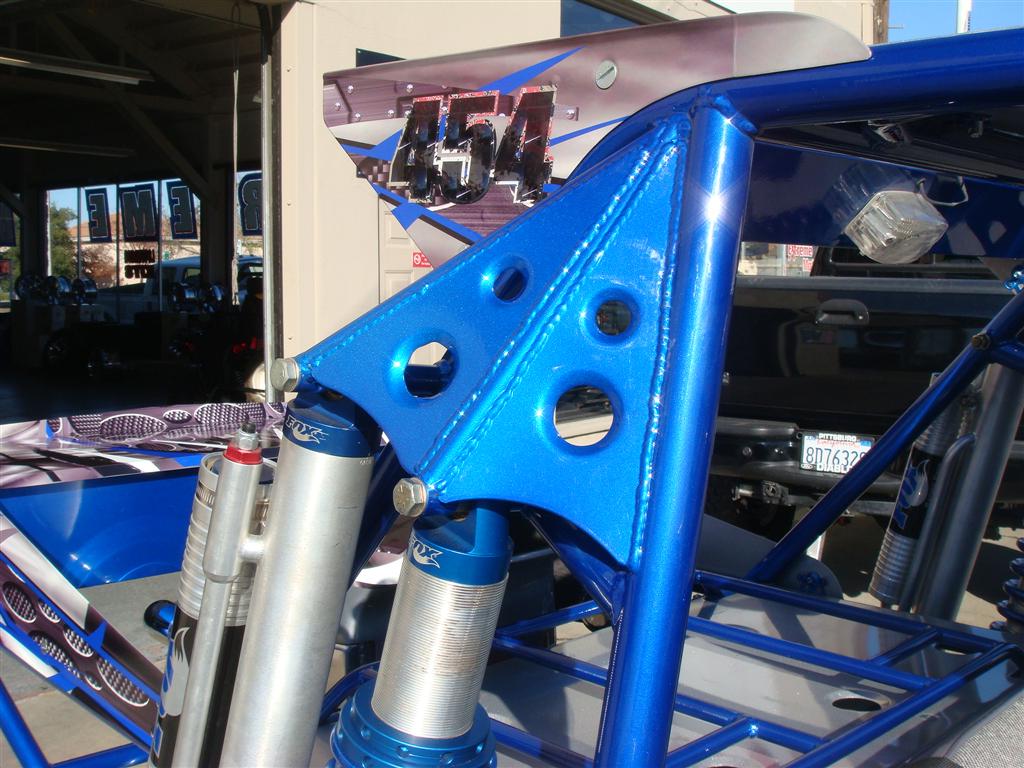

Fox 2.5 coil over shocks – rear

Fox 2.5 Bypass shocks – rear

Chassis has:

Entry steps

Grab handles

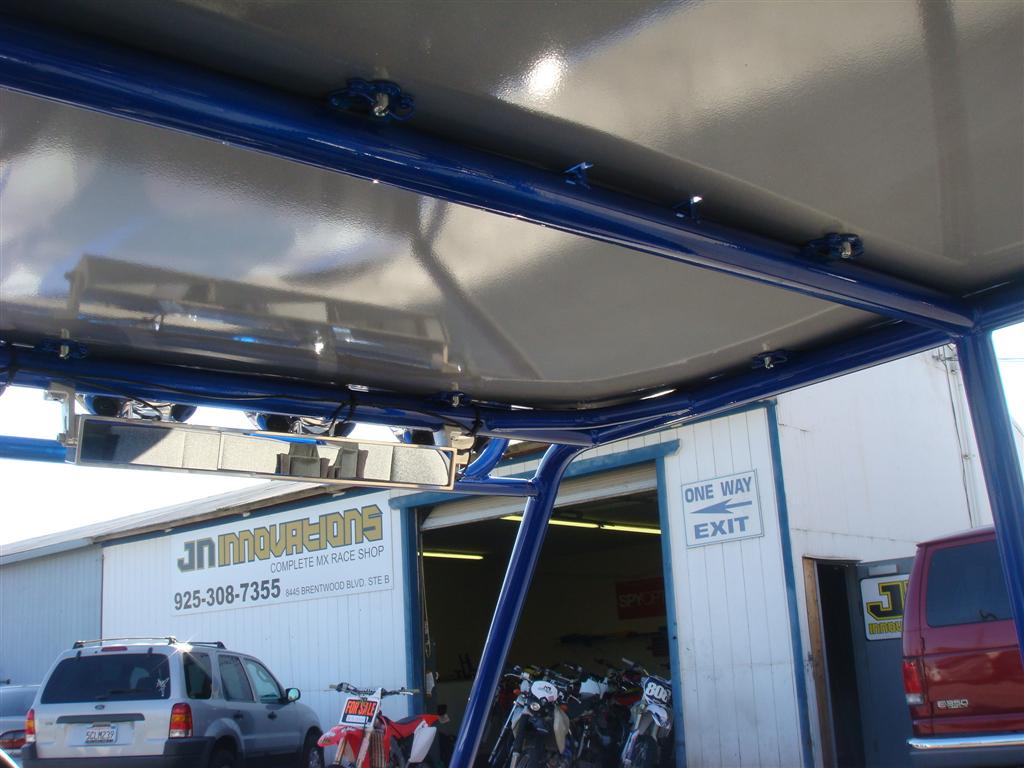

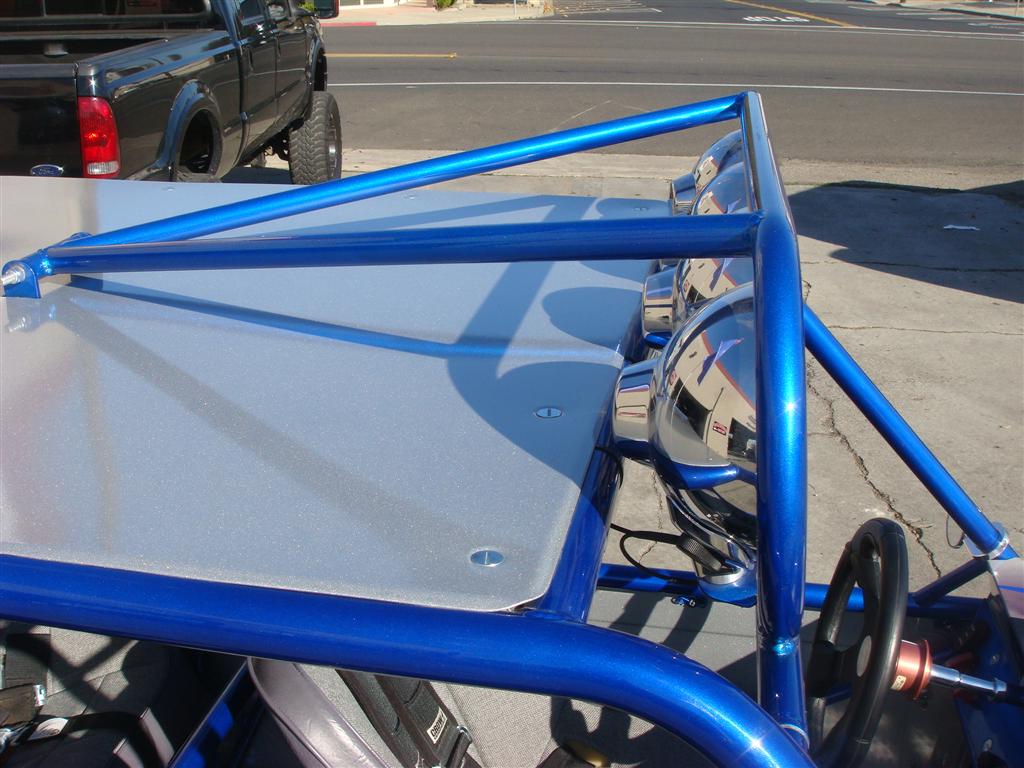

Roof

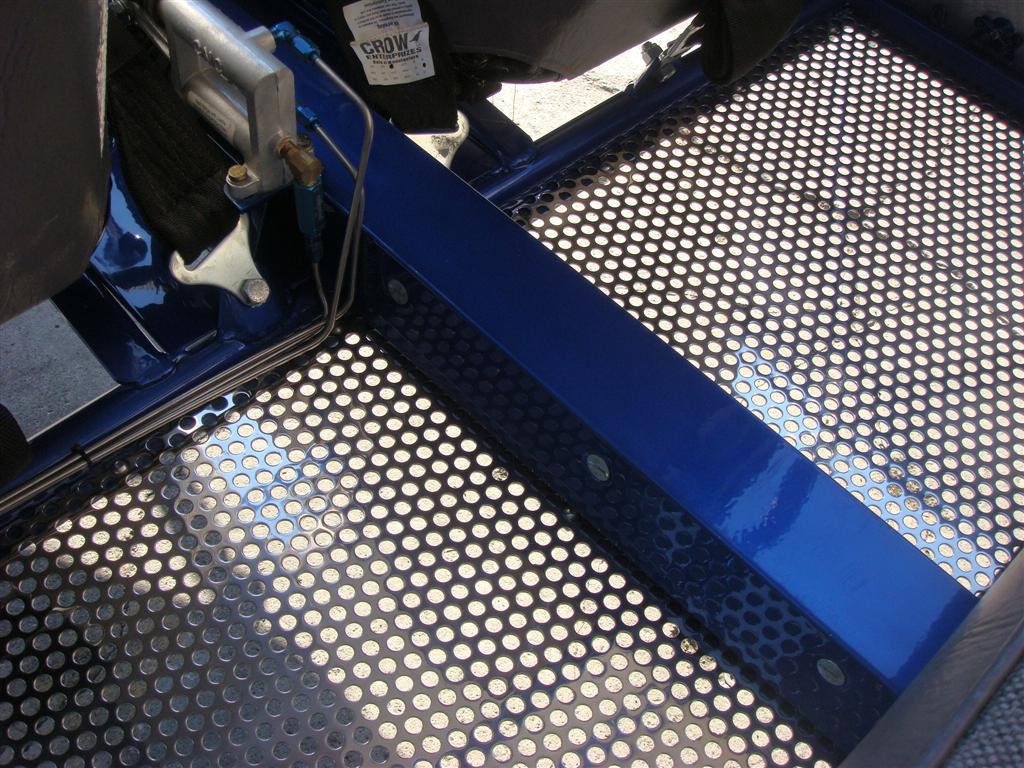

Polished stainless floor

Full body with hood

Roof bars

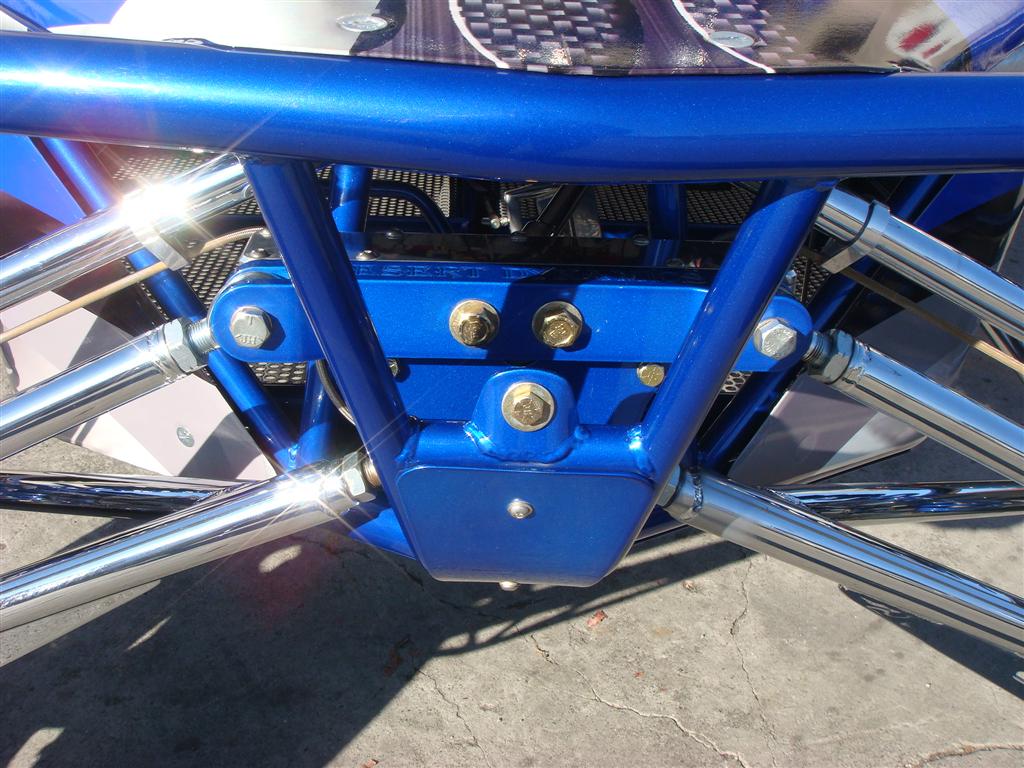

Extra gusseting

Skid plate

4 wheel disc brakes

4 piston Wilwood calipers rear

Pro Am front brakes with vented rotors

Pro Am front Hubs

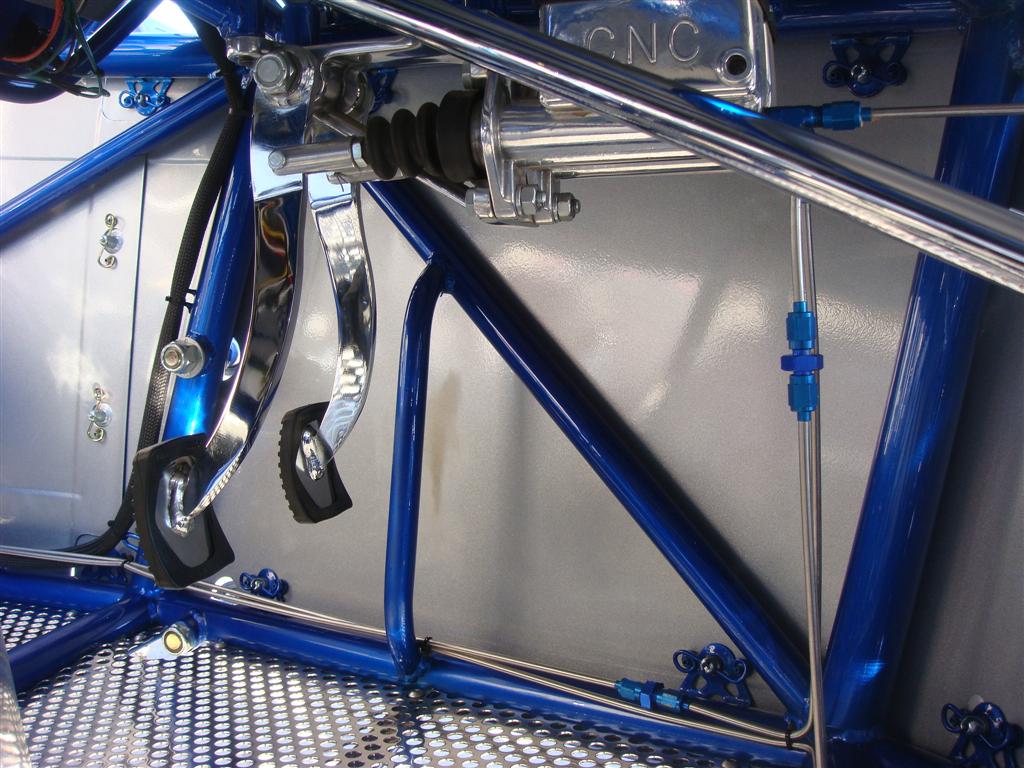

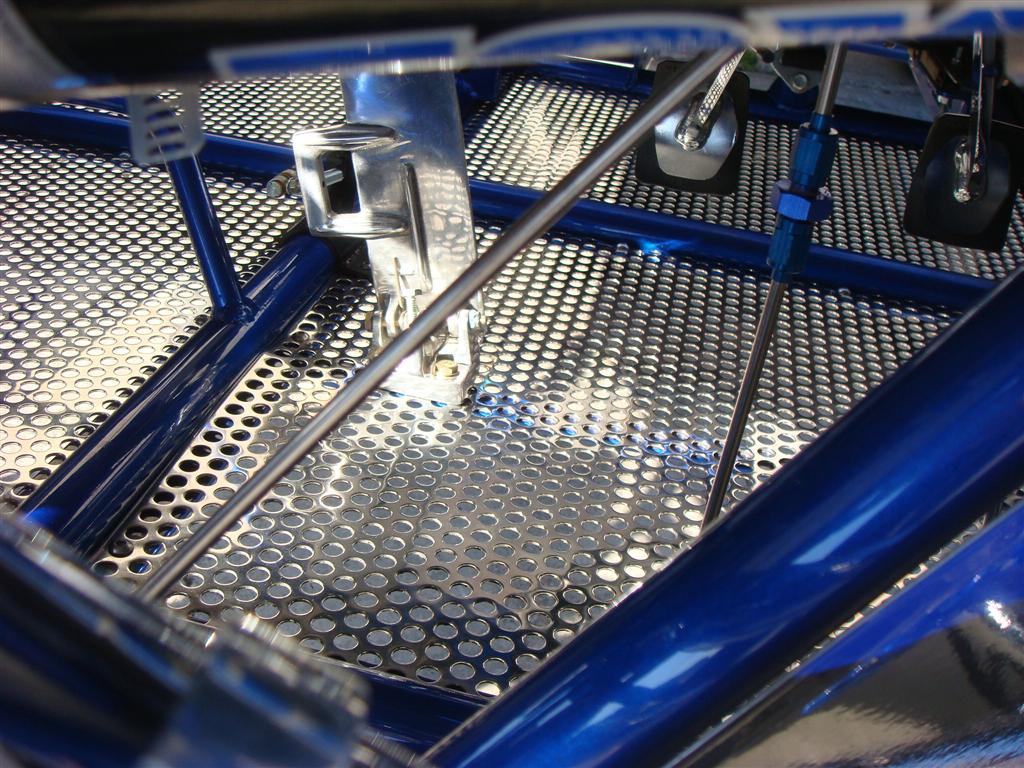

CNC brakes and hanging pedals

CNC Turning brake

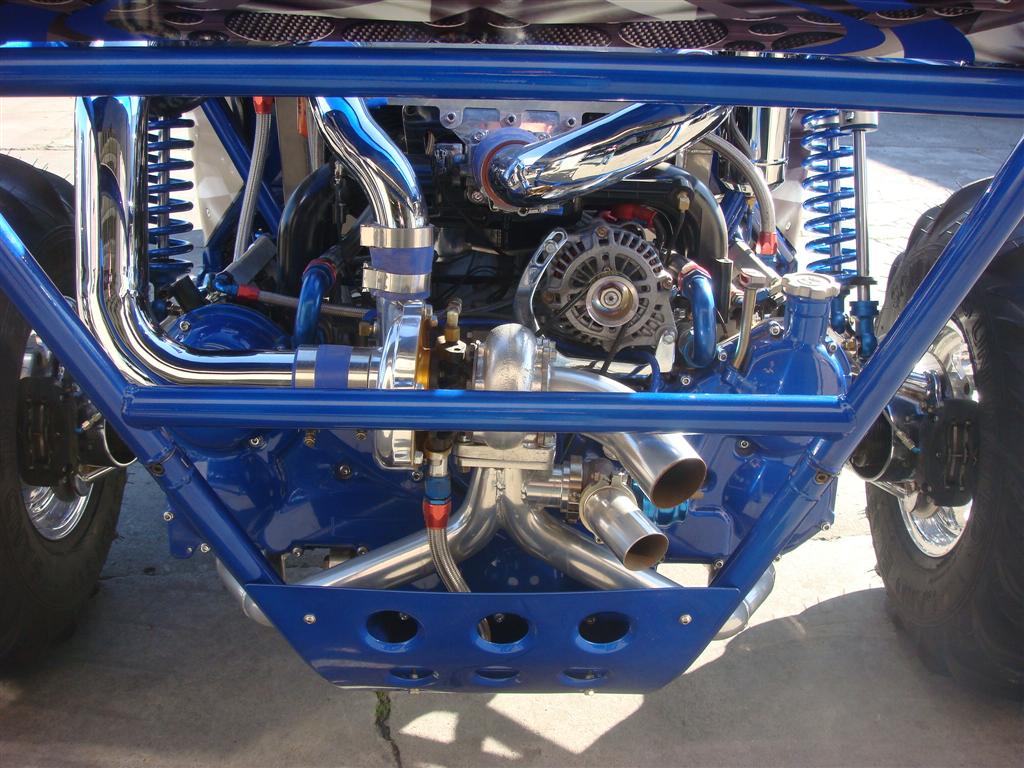

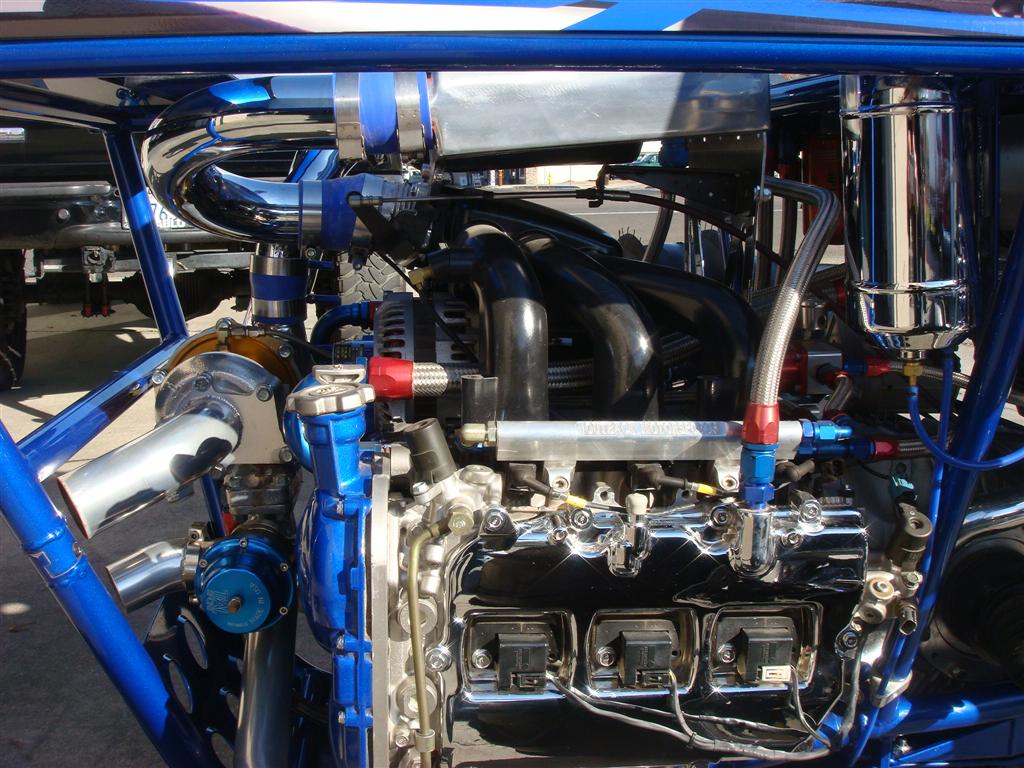

New Subaru crate engine

3.0 Type ‘R’ 6 cylinder

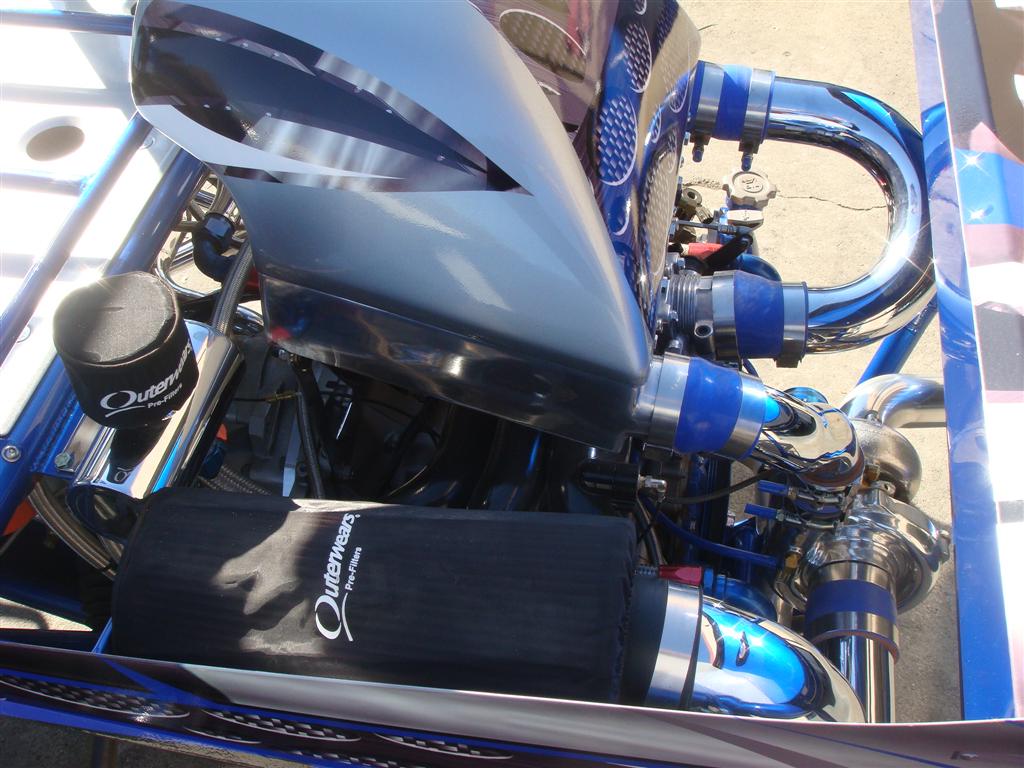

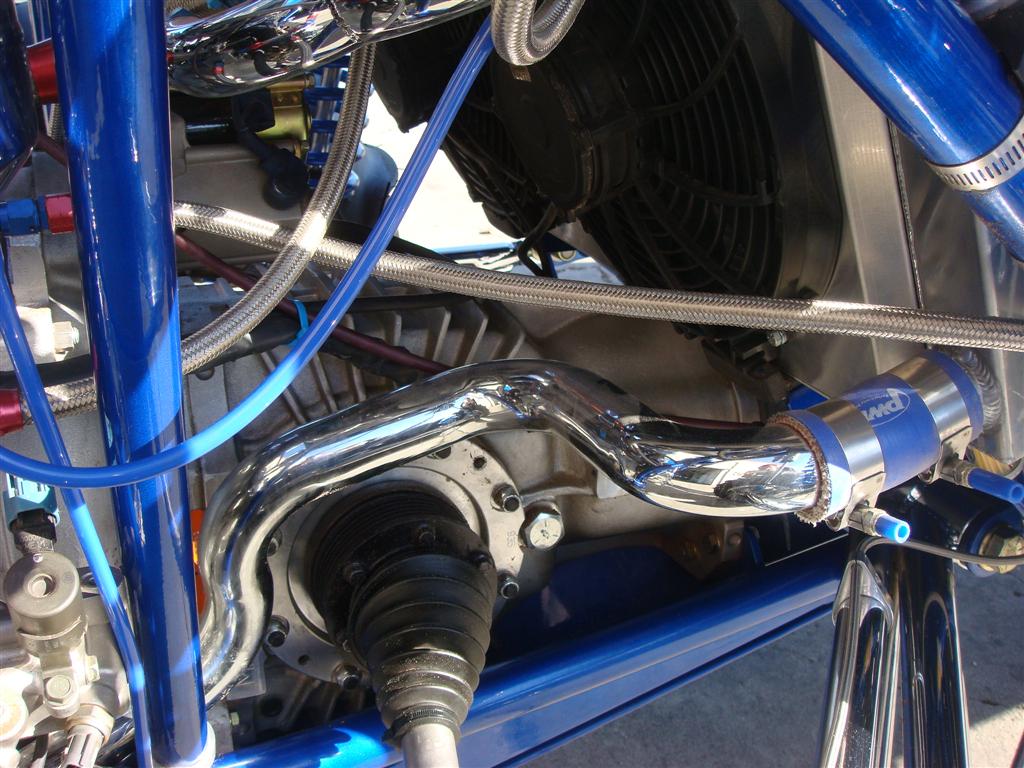

Intercooler

Turbonetics turbo at 5psi boost

Engine was tuned and dyno’d at Outfront Motorsports at 485HP

Rev limiter set at 7200rpm

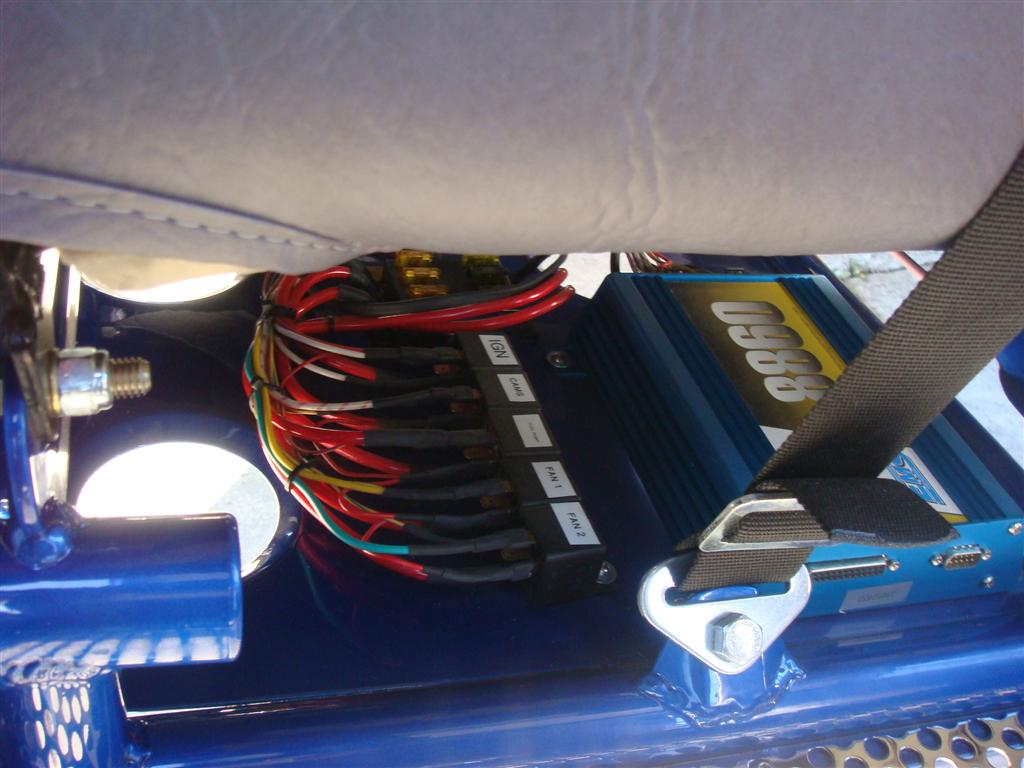

EMS ECU Computer 8860

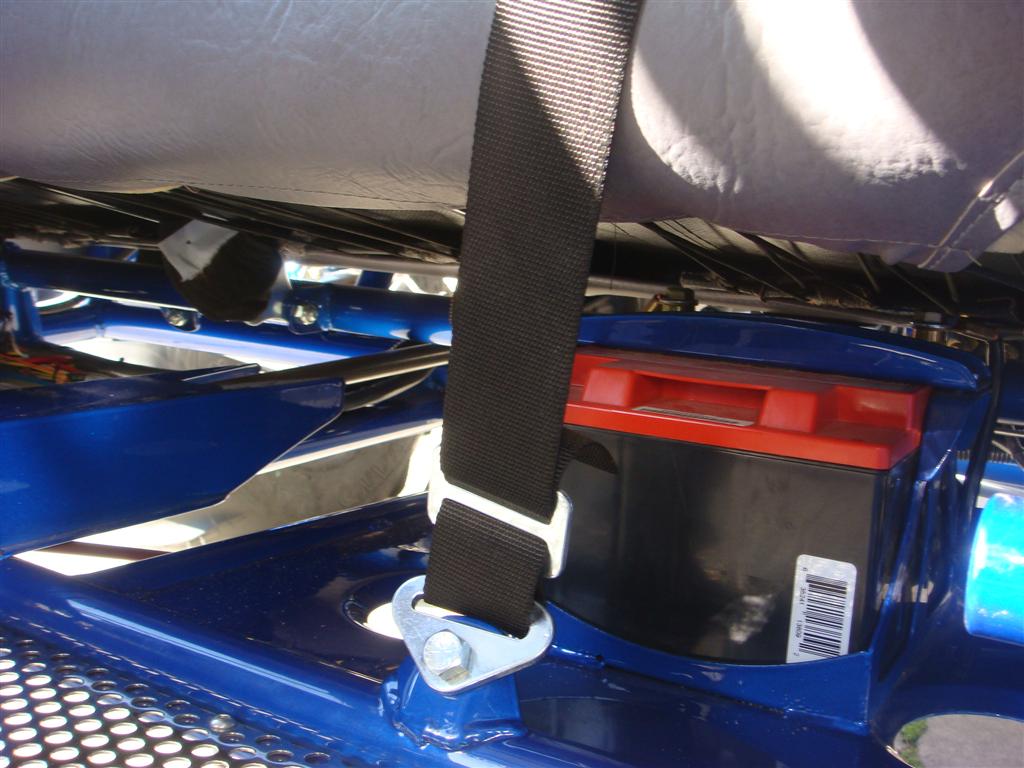

Odyssey battery with cut off switch

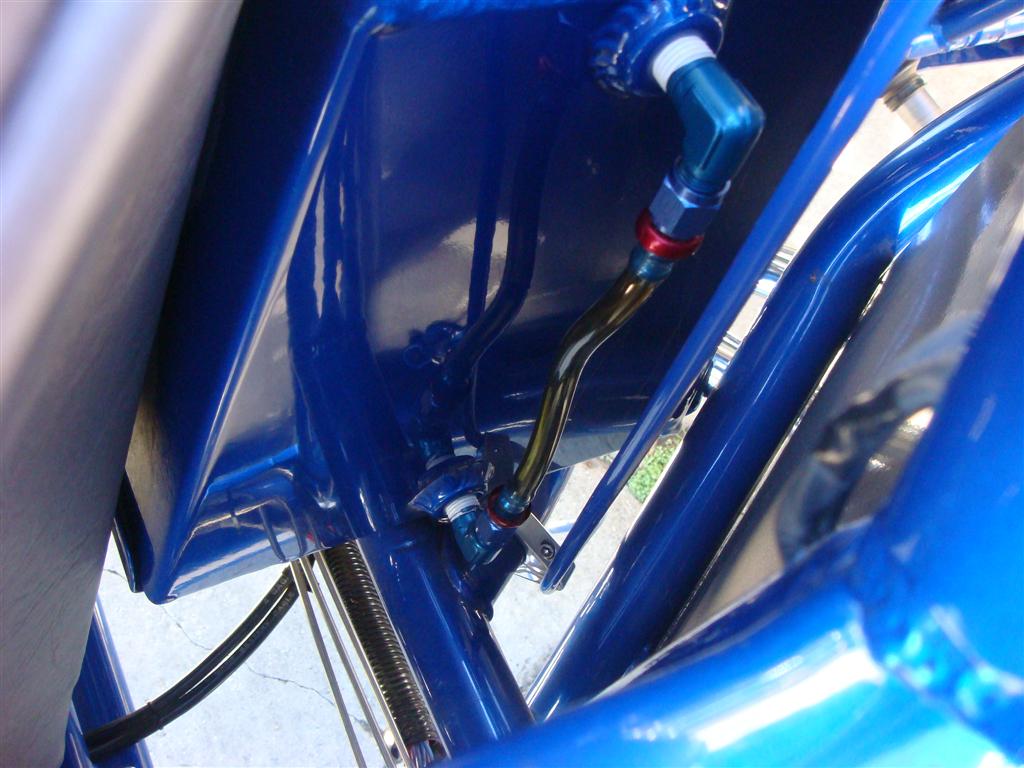

Fuel system has pre filter and post filter

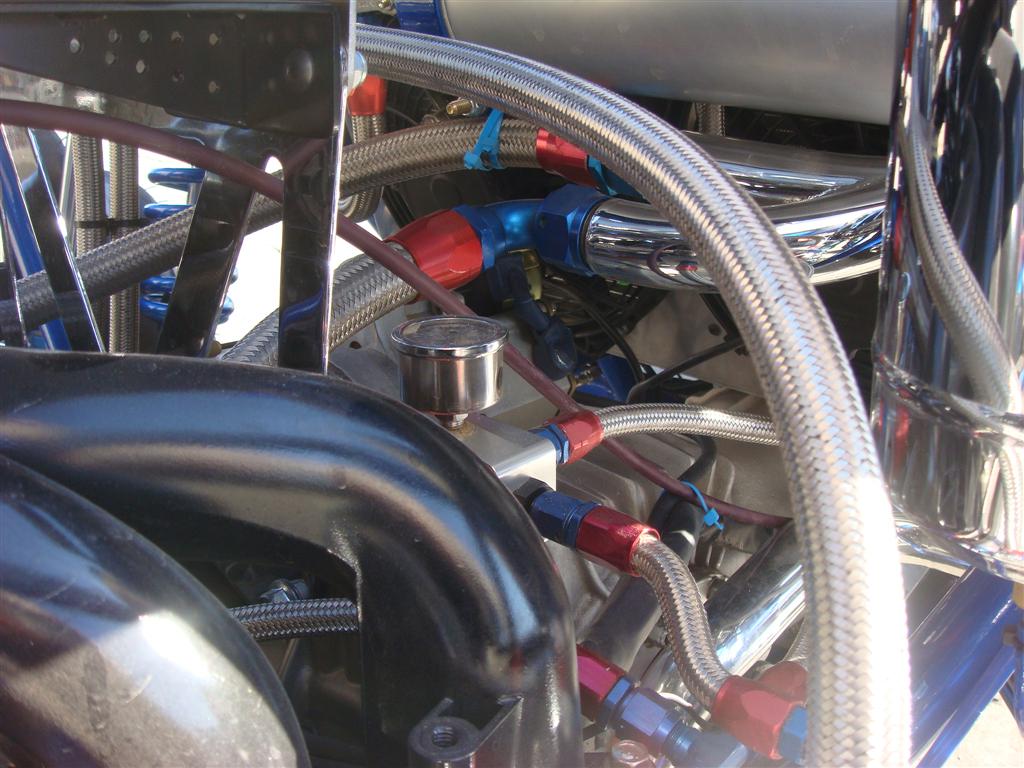

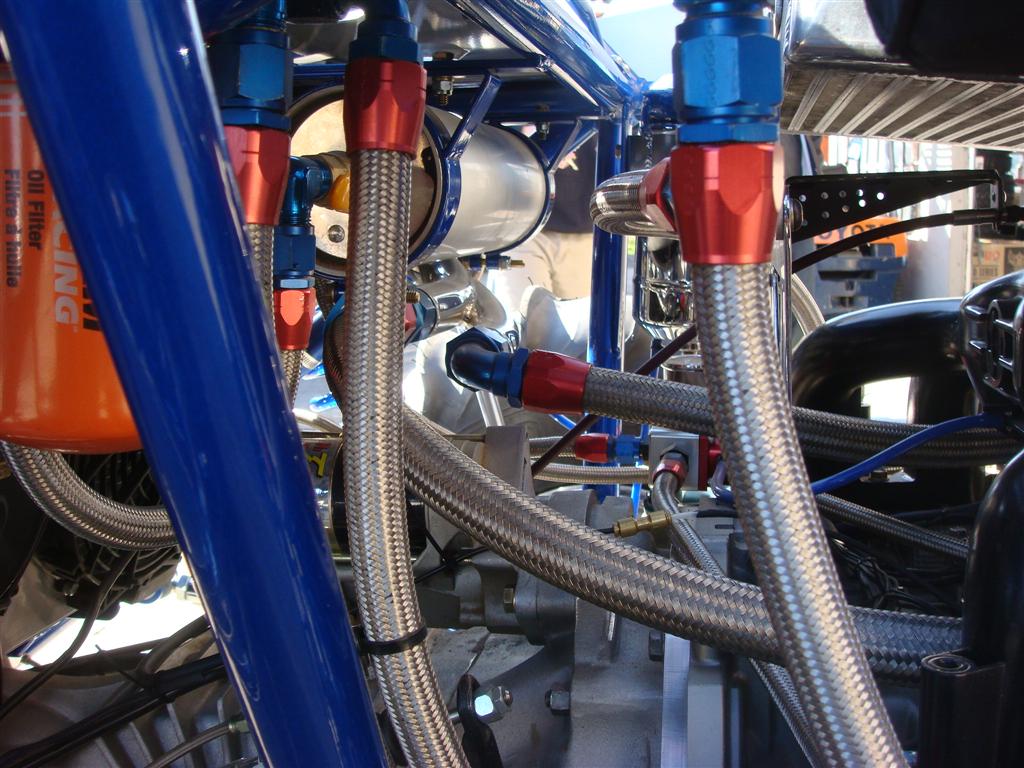

All lines are stainless steel braided

AN fittings

Aeromotive fuel regulator

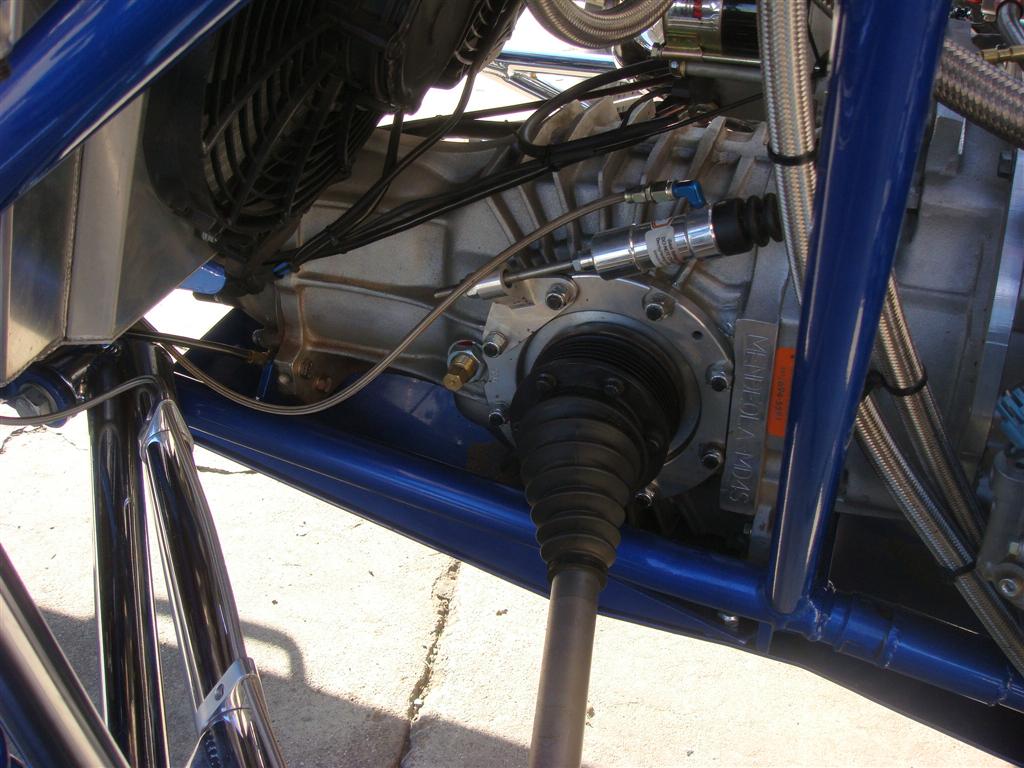

Transmission is a new Mendeola MD4S-2D

G50 upgrade Weddle gears

Charlyn power steering

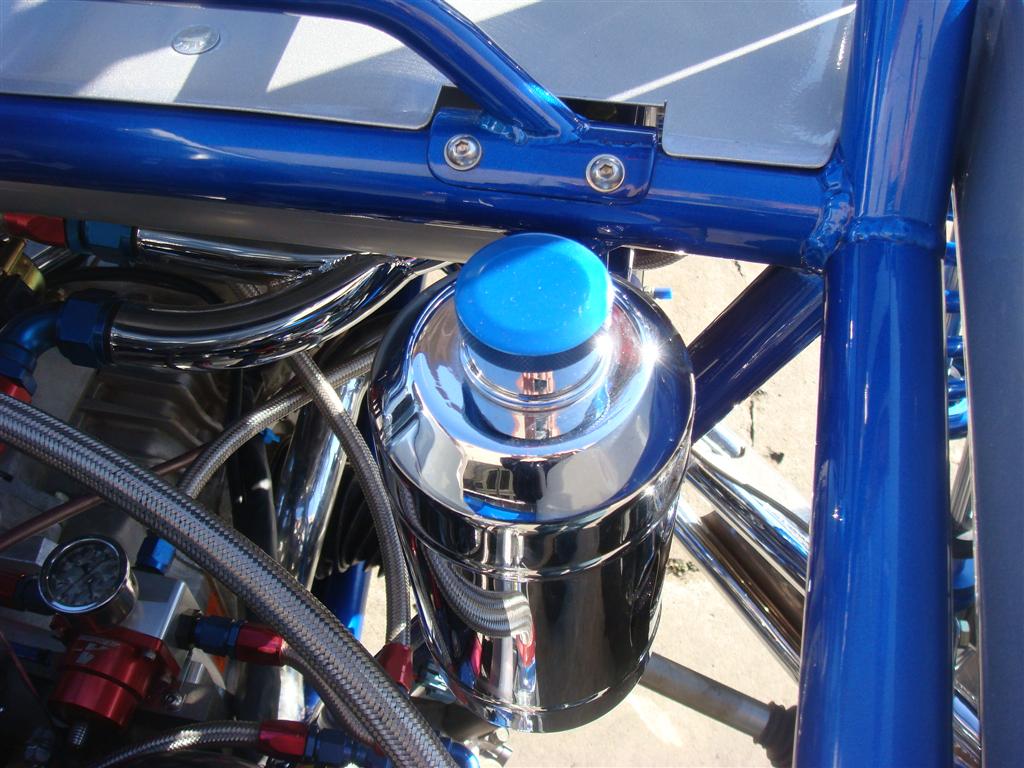

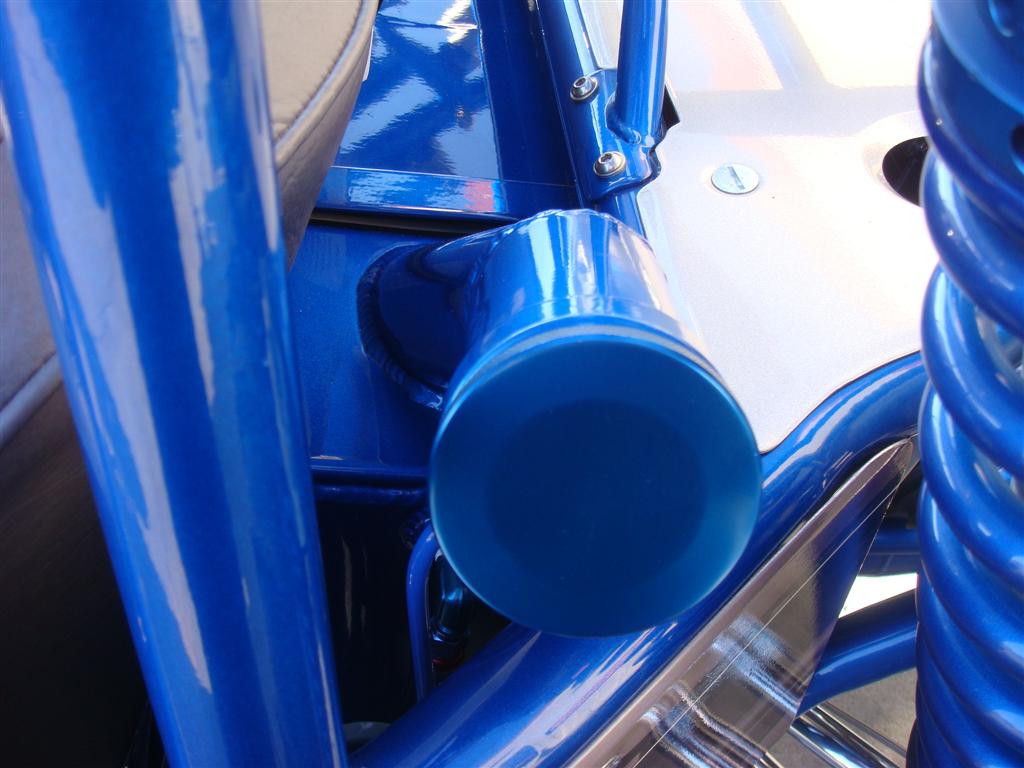

Howe reservoir with filter

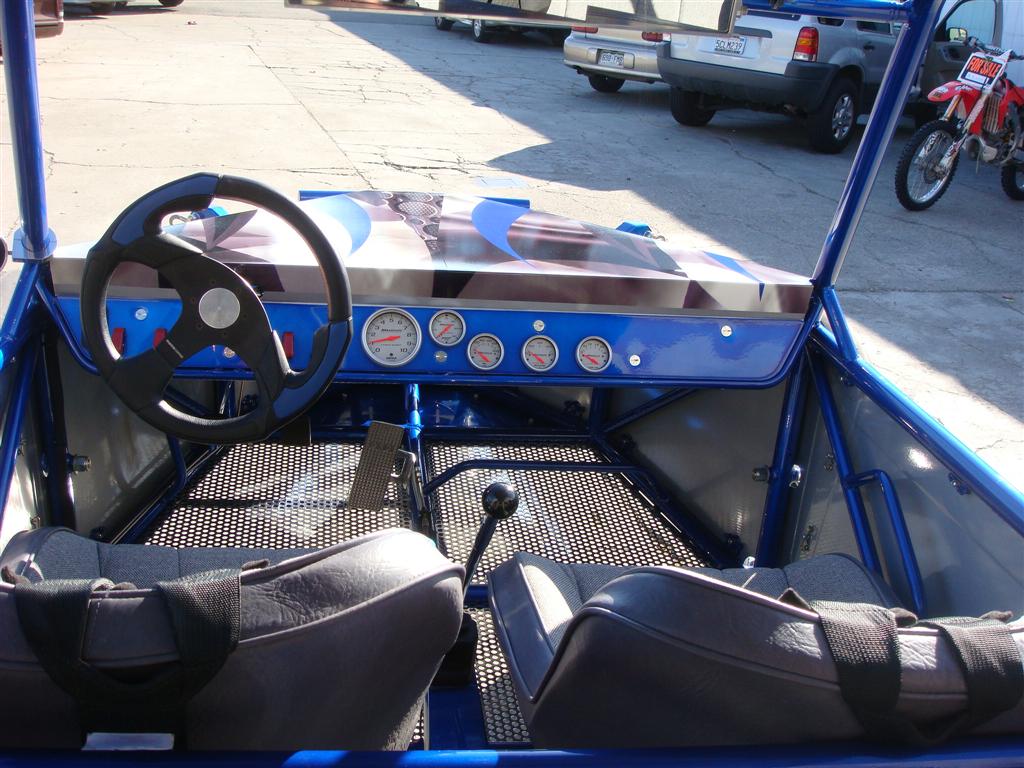

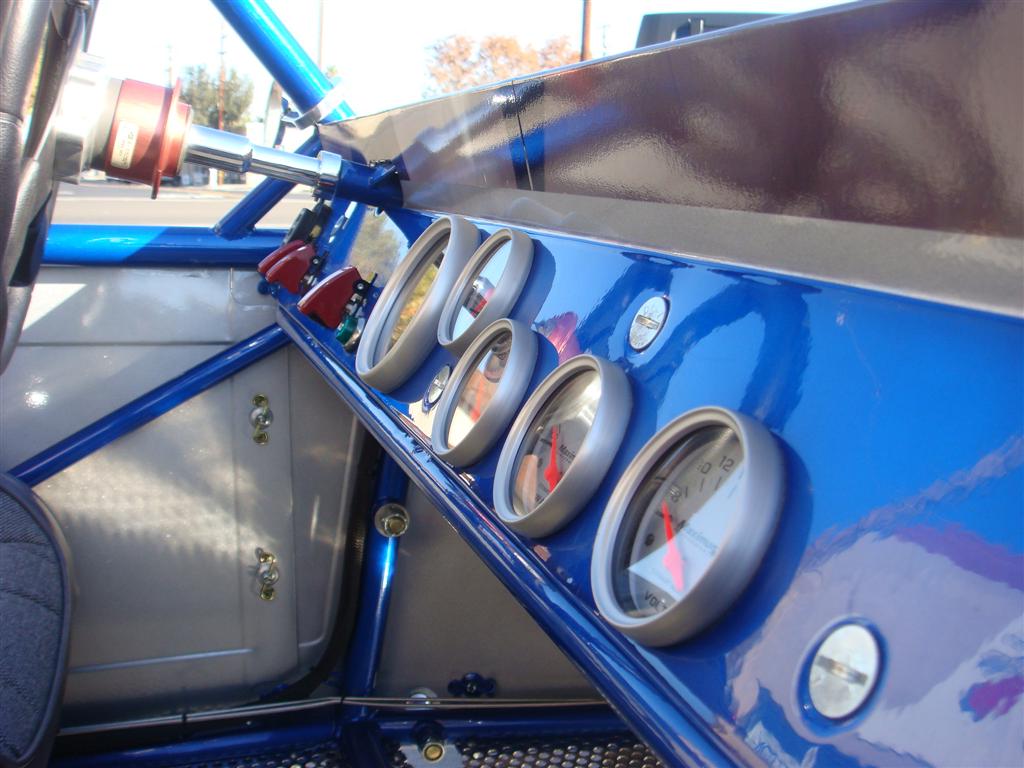

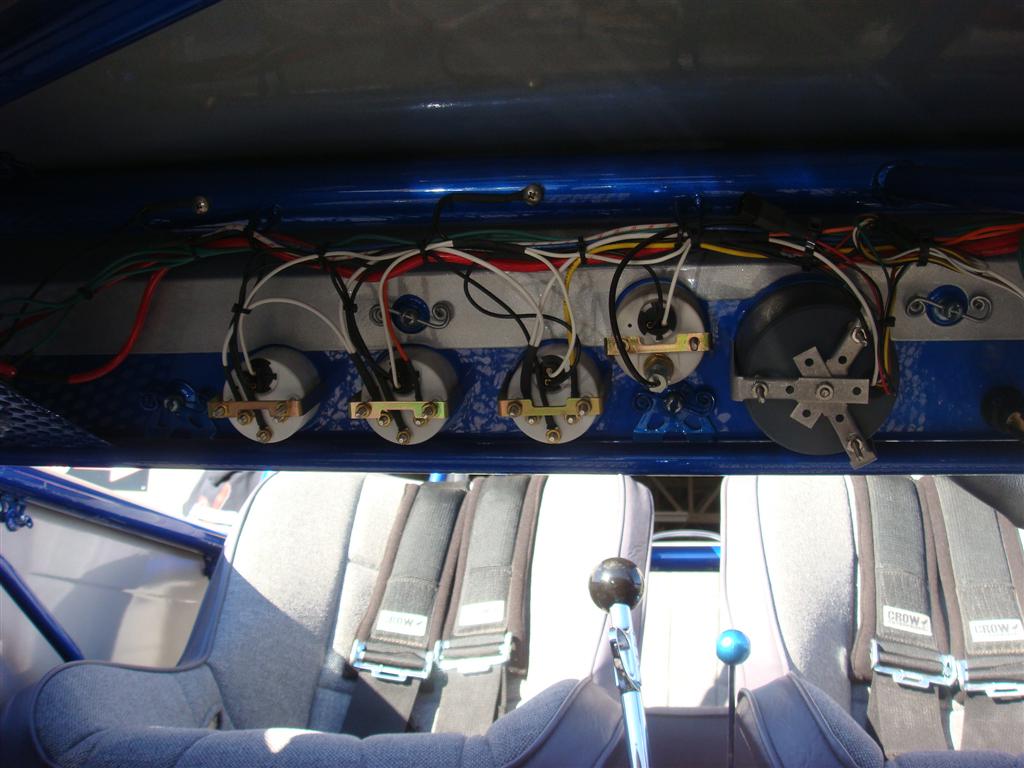

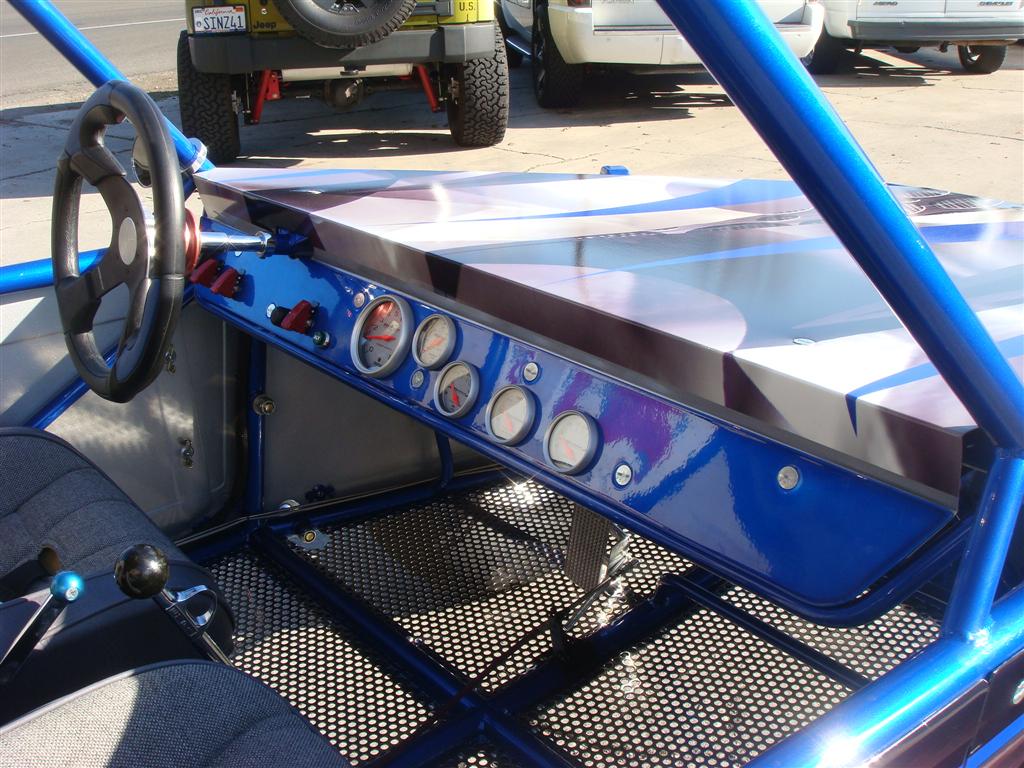

Stewart Warner Gauges

Tachometer with recall and shift light

Turbo Boost

Oil pressure

Water temperature

Voltage

Momo Steering wheel

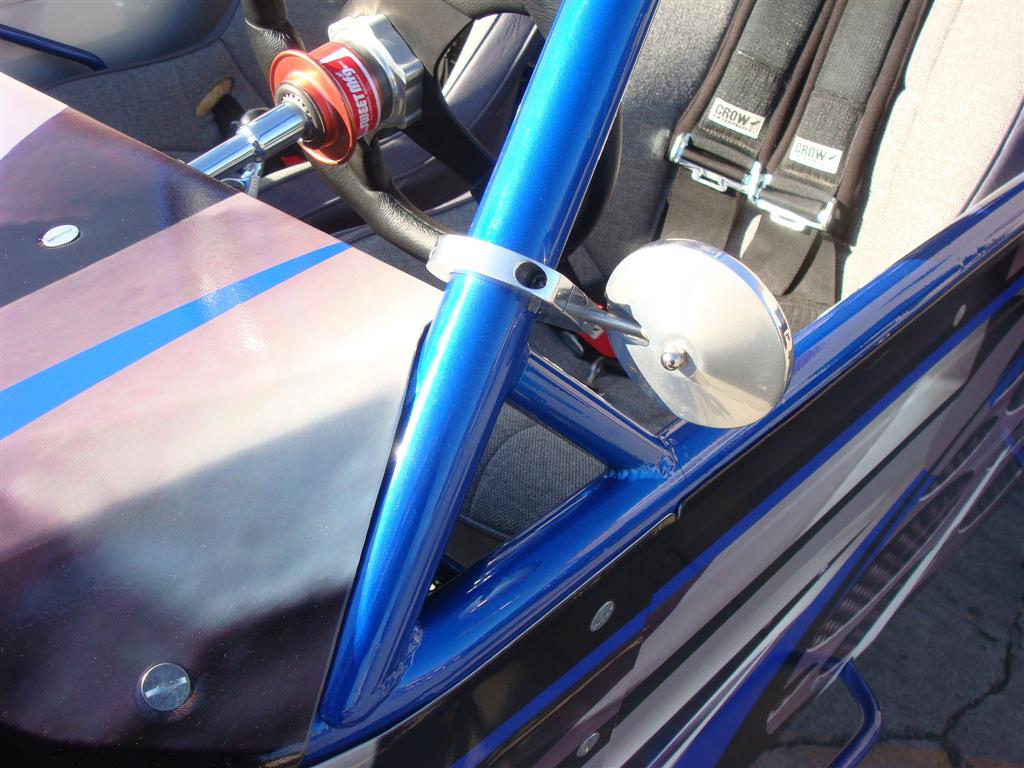

Sweet Quick release steering hub

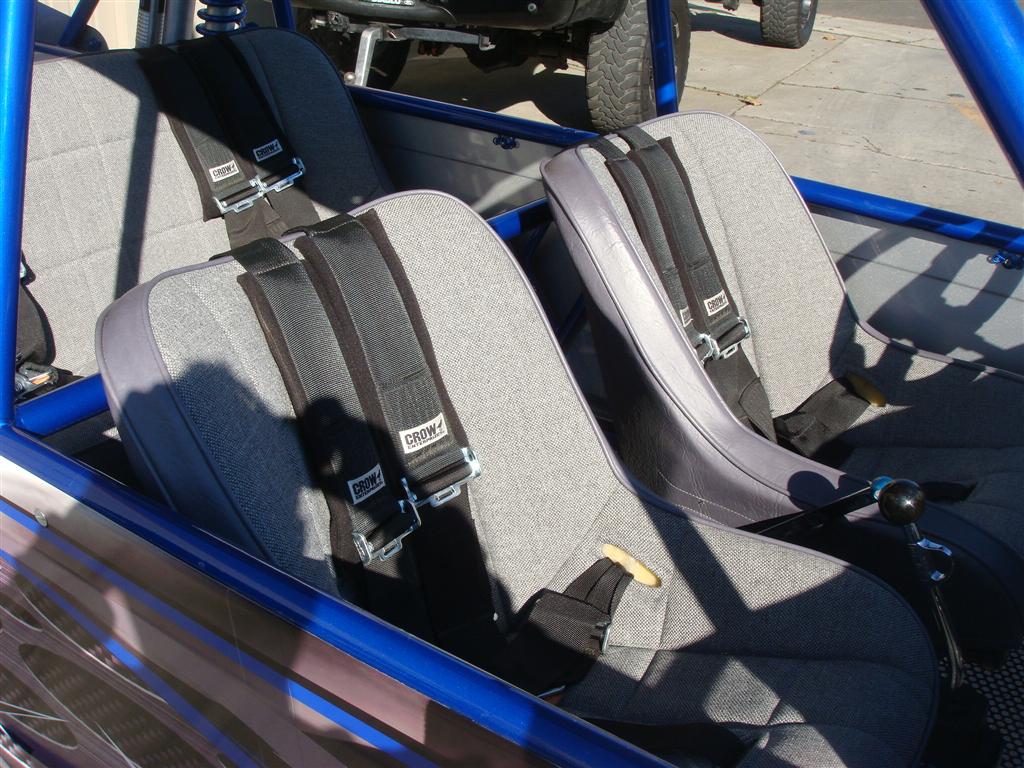

PRP seats

Crow harnesses 5 pt.

Custom graphics are all removable vinyl.

The very top picture better reflects the true color of the blue in the car, but none of the pics truely show the real colors or details.

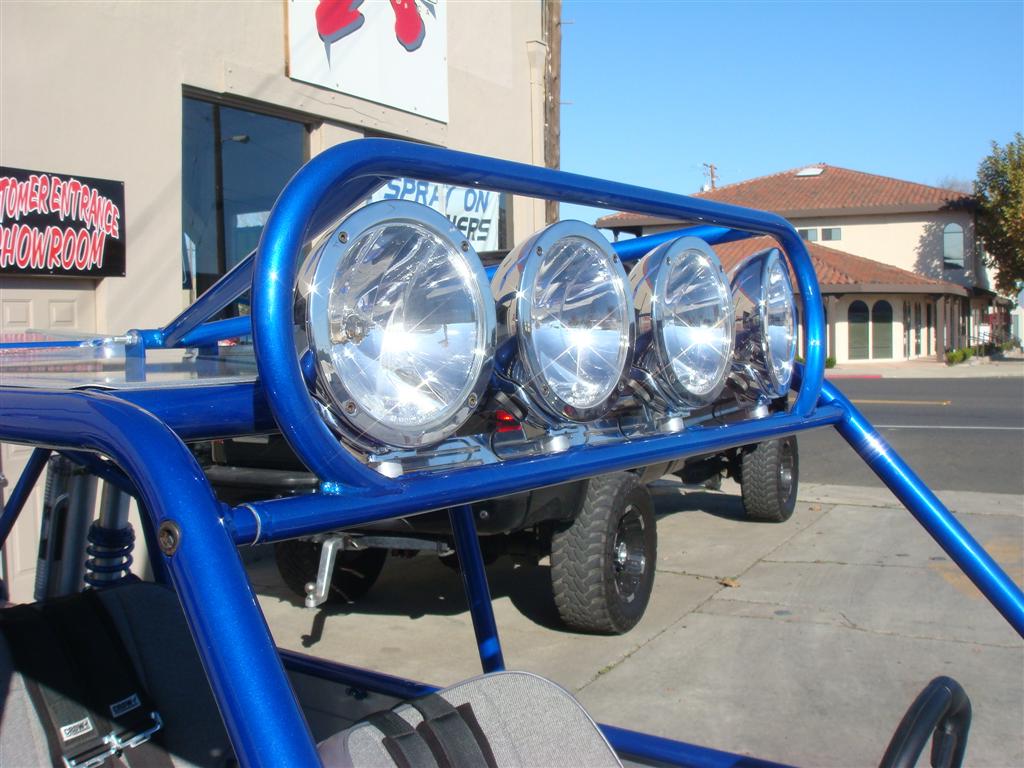

4 Hella lights on light bar with flush mount to cage

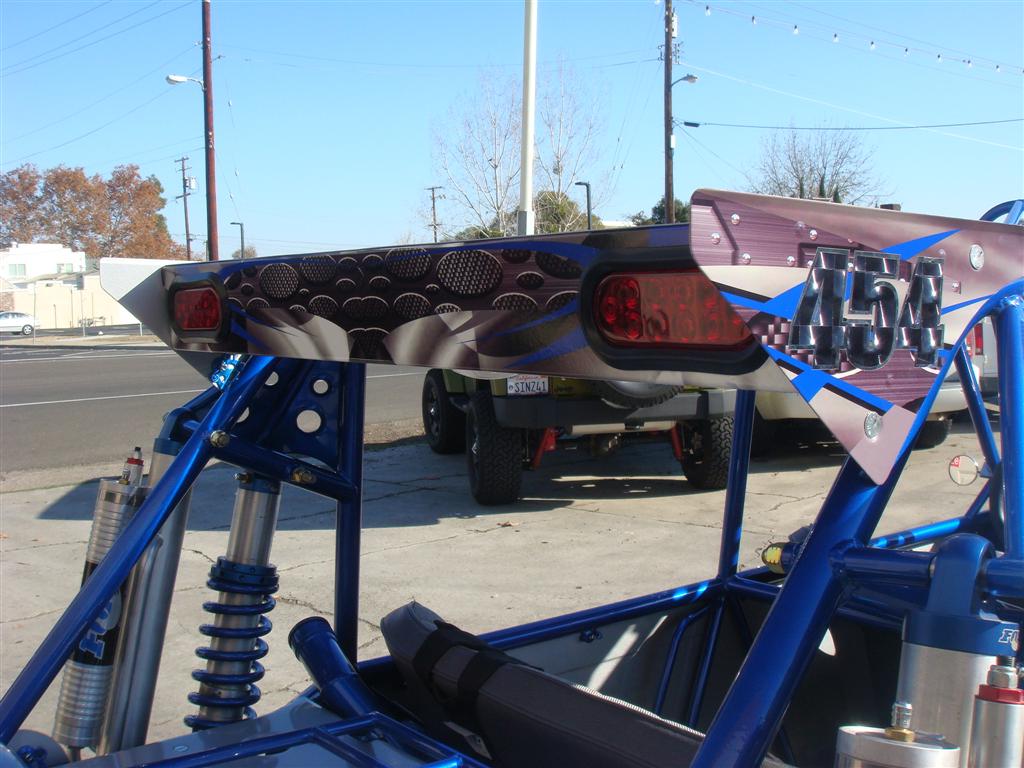

Roof wing with LED tail lights

Rear cage lights – LED

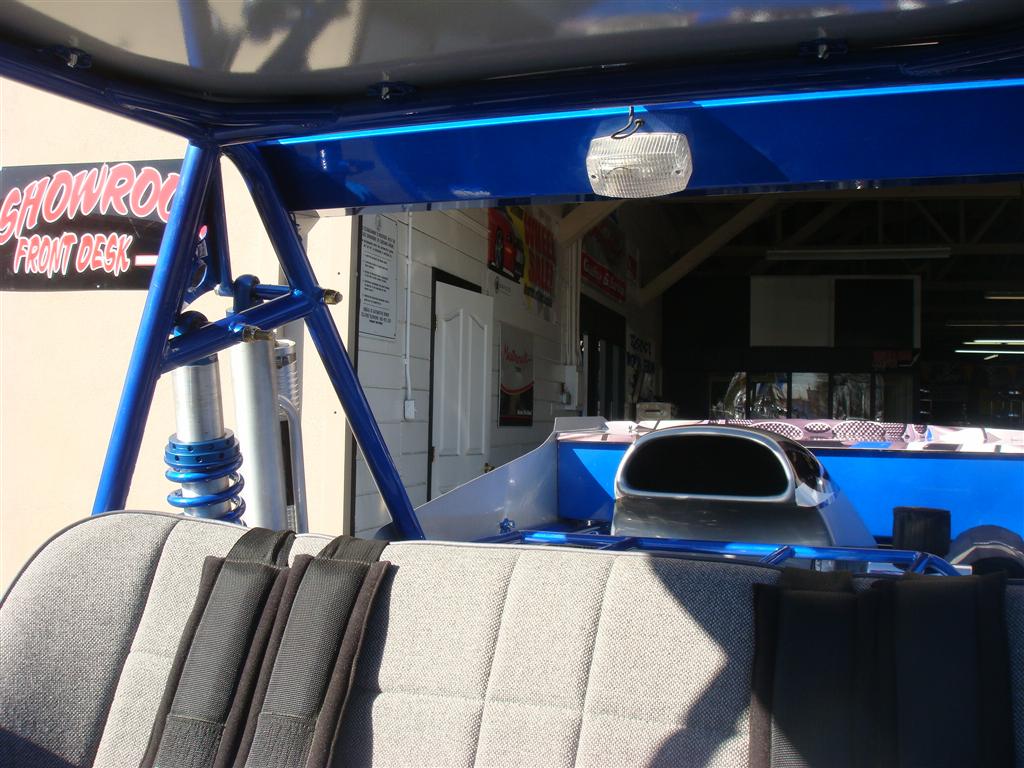

Dome light

Flag light

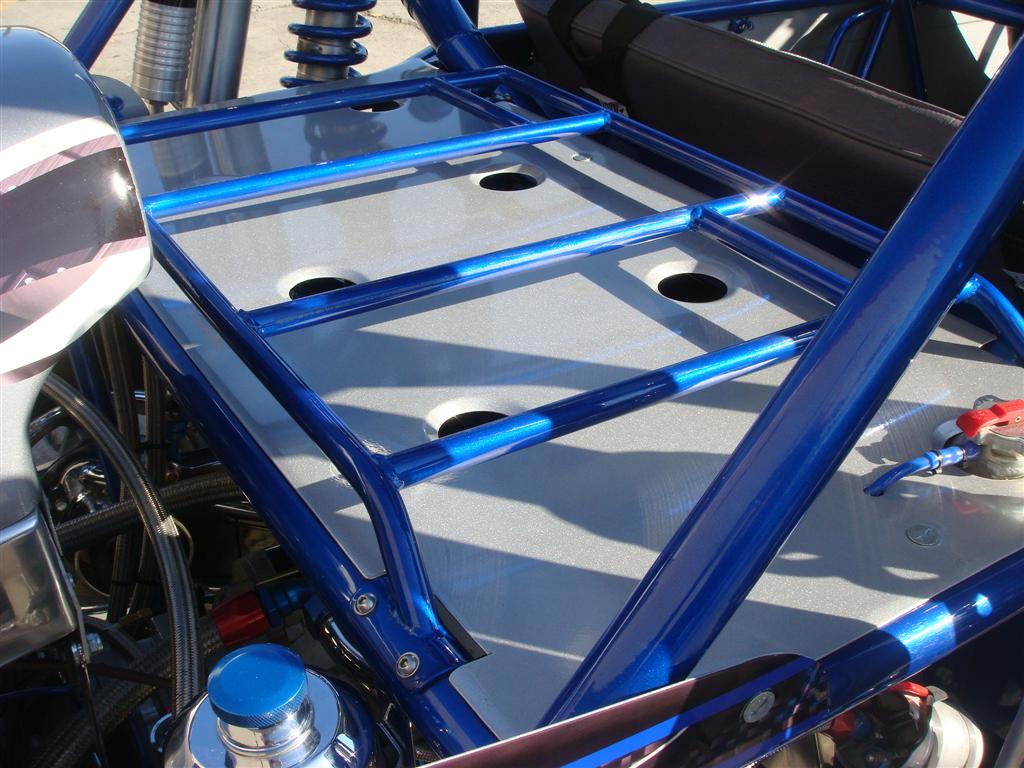

Trunk wing with storage

Custom rack for two Igloo ice chests

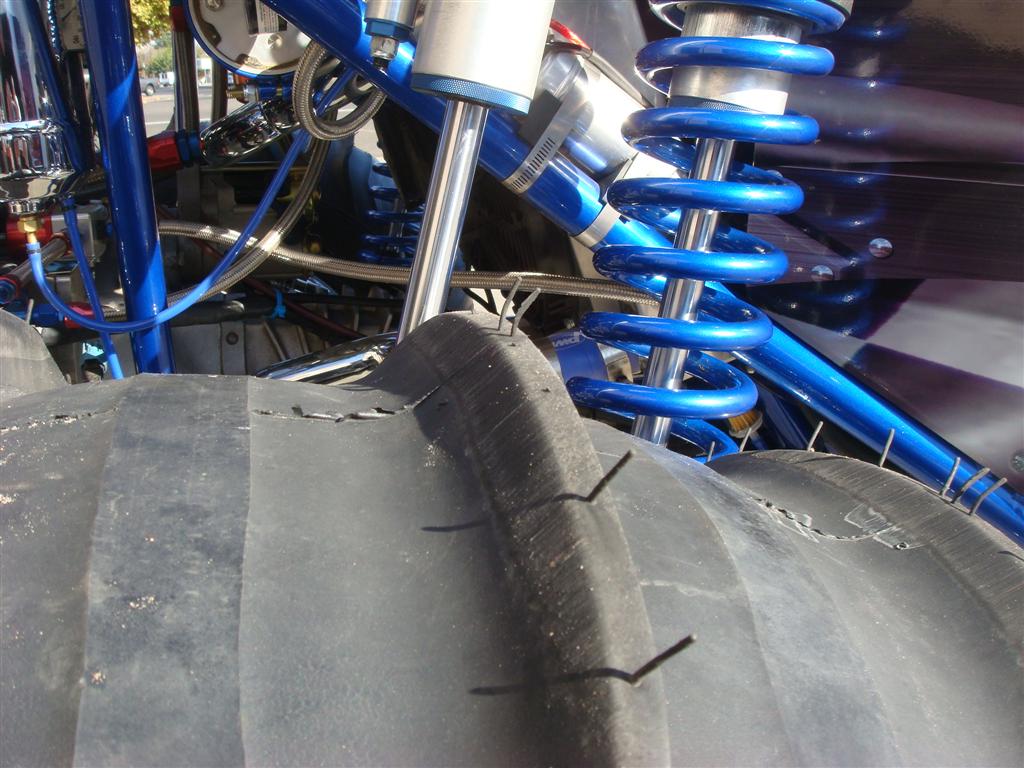

33” Sand Tires Unlimited paddles

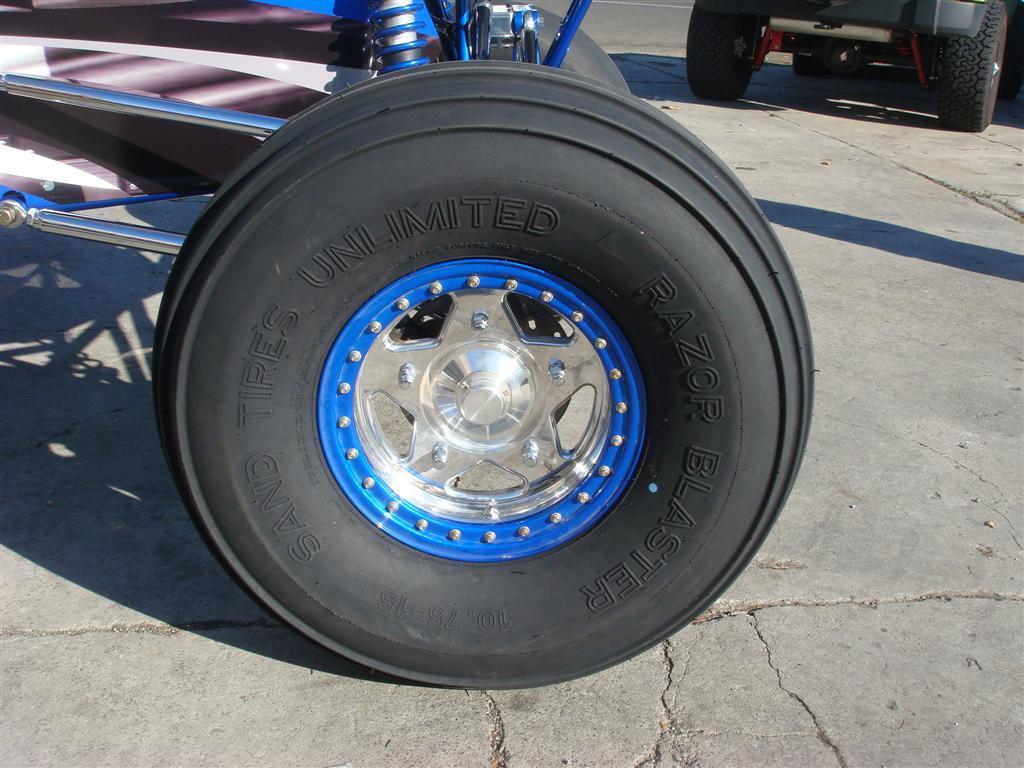

10.75 x 15 STU Razor Blasters

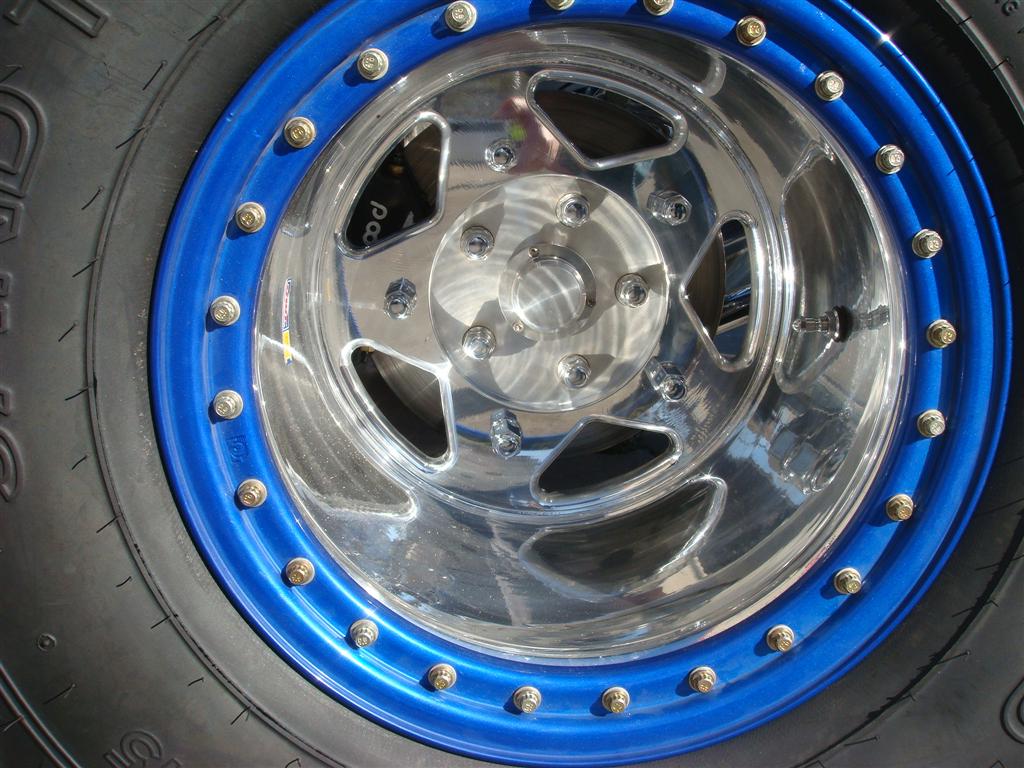

Douglas Wheels beadlocks with powder coated rings

15 x 12 rear

15 x 5 front

This car was built and designed to be bullet proof. Outfront claims this engine package can be run hard and last forever. The 2D tranny is overkill for the engine combo. The DD chassis has a reputation for being great cars in both the sand and the dirt.
